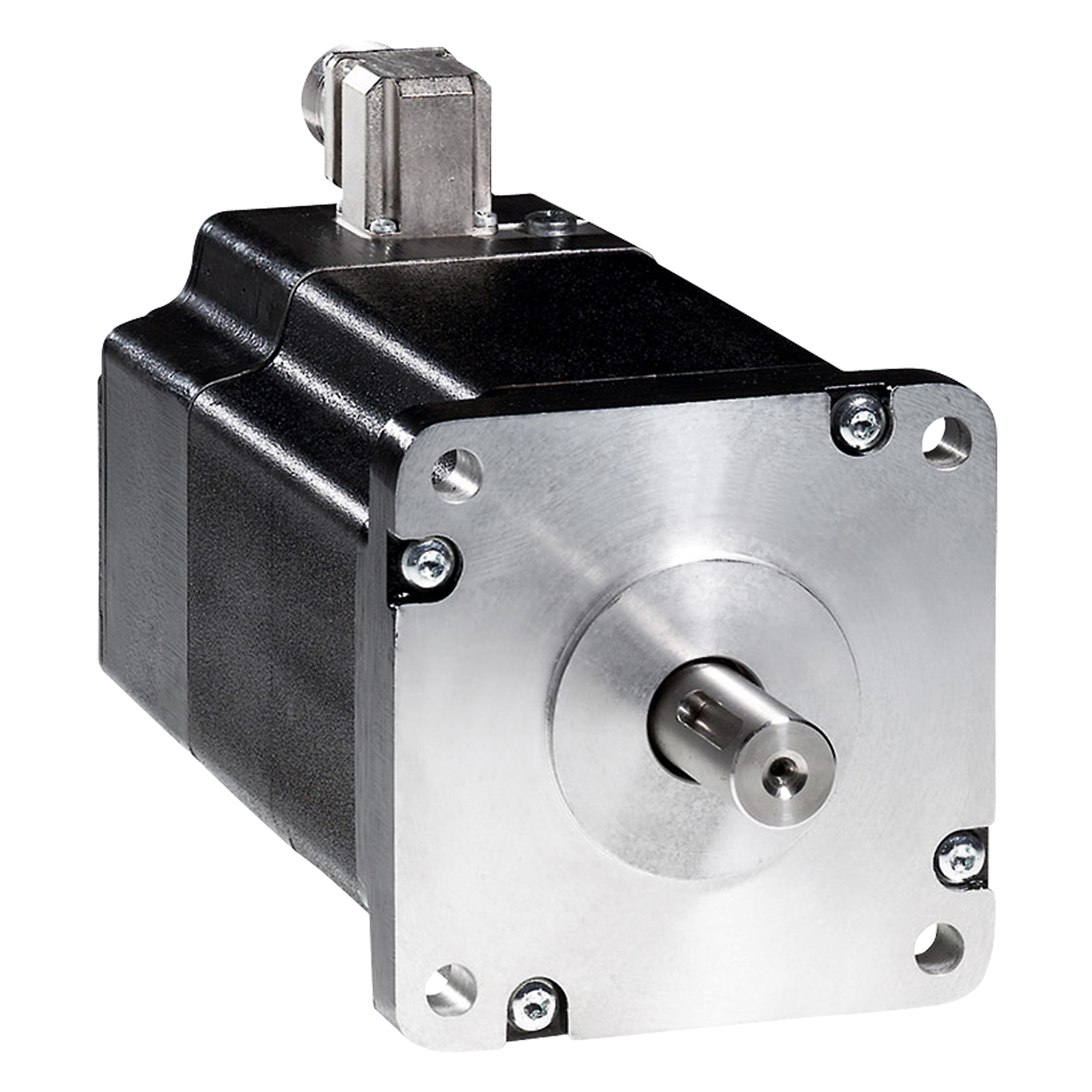

Schneider Electric BRS3ACW850FBA 3-Phase Motion Control Motor, 3000 rpm Speed, 12 N-m Torque Rating
Sku #38911922415
MFG #BRS3ACW850FBA
Attributes
| Type: | 3-Phase |
| Enclosure Type: | Box B |
| Torque Rating: | 12 N-m |
| Speed: | 3000 rpm |
| Shaft Size: | 19 mm |
| Mounting Type: | Flange |
- Forget about encoder systems and commissioning software
- A compact drive and a high-accuracy motor included in the package
- Reference values are preset and monitored by a higher-level PLC or a Schneider Electric motion controller
- 3-phase stepper motors stand for precision, power and sturdiness
- In most cases a gearbox is not required due to the high torque
- The Lexium SD3 require very little space in the control cabinet
- Compact dimensions (H x W x D 145 mm x 72 mm x 140 mm)
- The price is as compact as its dimensions
- Two different power classes, different interfaces and numerous other options and accessories
- Available up to 6.8 A
- Suitable for mains supply with 1-115 VAC and 230 VAC (50/60 Hz)
- Feature a 5 V and a 24 V pulse/direction interface or fieldbus interfaces (CANopen, CANopen Motionbus and Modbus or PROFIBUS DP)
- SD3 also available with rotation monitoring (SD3 28 has it on board)
- Safe Torque Off functionality prevents unintended machine starts as per IEC/EN 61800-5-2 for operator safety
- The connection to the positioning electronics is retained even when the Safe Torque Off function is active, Re-homing is not necessary
- IEC 60072-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm|EN 50347|WEEE
