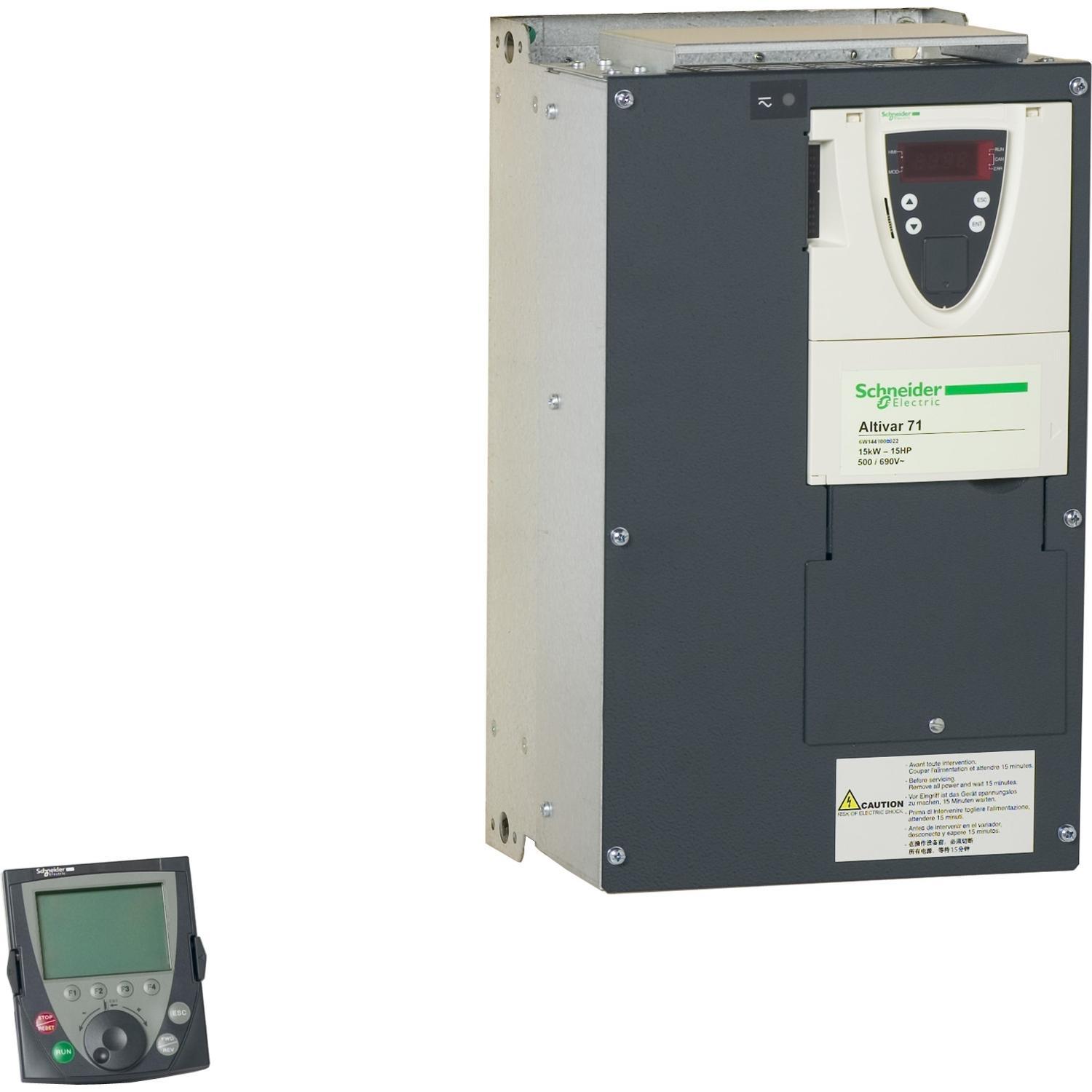

Schneider Electric ATV71HD15Y Altivar™ 71 3-Phase AC Variable Speed Drive With Integrated EMC Filter, 575/690 VAC, 16.7/19.8/20.2 A, 15 hp, 9.45 in W x 9.29 in D
Sku #38911921485
MFG #ATV71HD15Y
Attributes
| Type: | 3-Phase |
| Voltage Rating: | 575/690 VAC |
| Horsepower: | 15 hp |
| Series: | Altivar™ 71 |
| Amperage Rating: | 16.7/19.8/20.2 A |
| Width: | 9.45 in |
- Protection of motor and of drive
- Power removal, ATEX safety functions
- Integrated EMC filter class A
- I/O extension cards, interface cards for encoder, controller inside programmable card
- Controller inside programmable card
- 15 hp at 575 VAC 3 ph horsepower rating
- 16.7 A at 600 VAC 3 ph/15 hp, 19.8 A at 500 VAC 3 ph 11 kW, 20.2 A at 690 VAC 3 ph 15 kW amperage rating
- 17 A at 15 hp amperage rating
- RoHS Compliant|REACH Compliant|Green Premium|WEEE Compliant|CE Certified|DNV Certified|ABS Certified|EN 55011 Class A Group 2|EN 61800-3 Environments 2 Category C3|UL Type 1|EN/IEC 61800-5-1|EN/IEC 61800-3|IEC 60721-3-3 Class 3 C2|EN 61800-3 Environments 1 Category C3|GoST-R Certified|CSA Certified|NOM 117|C-Tick.1 Certified|UL Listed|EN/IEC 60529|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- Complex, High Power Machine, Asynchronous and Synchronous Motors, Material Handling, Hoisting, Wood Machines, Process Machine, Textile Machines and Packaging Applications
