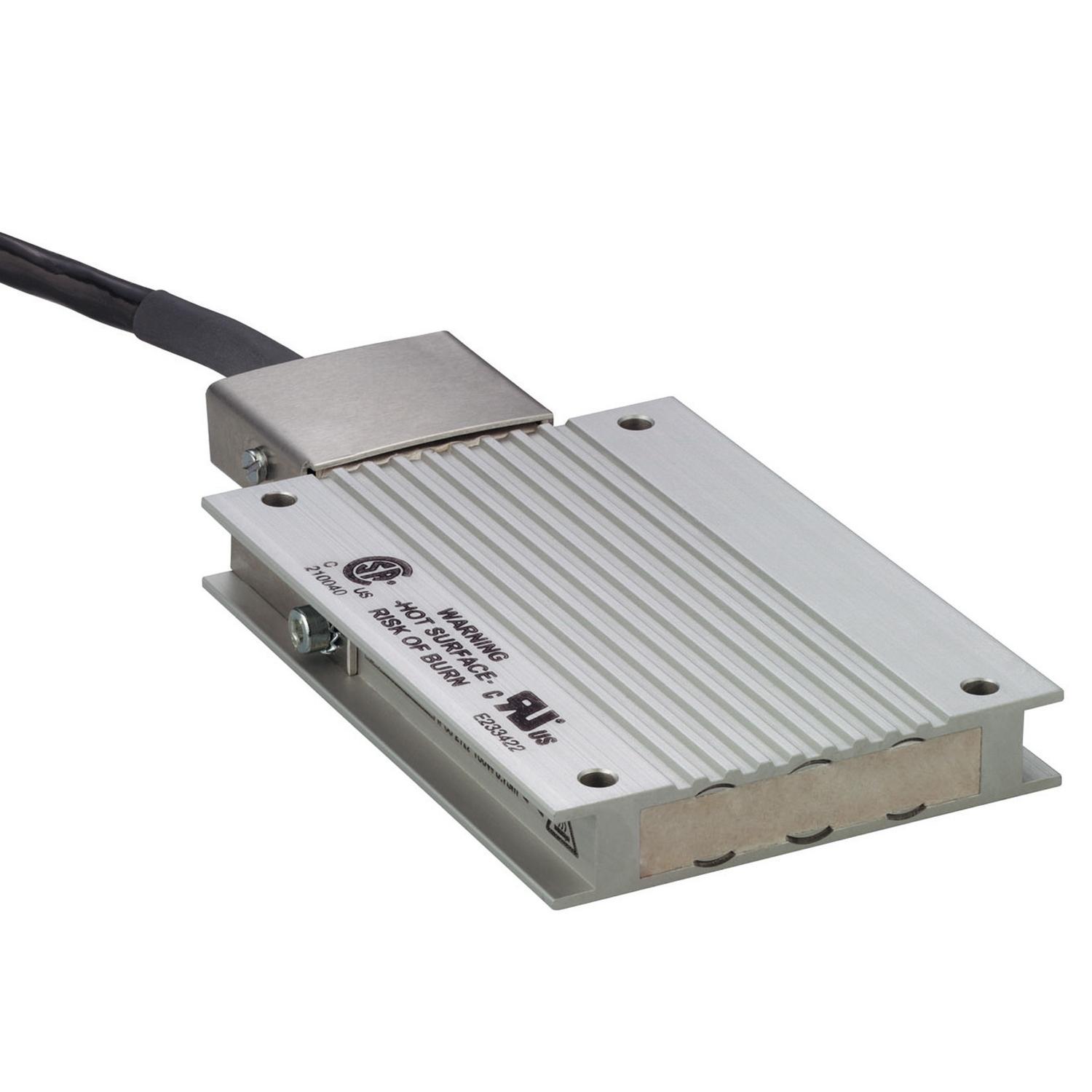

Schneider Electric VW3A7601R30 Braking Resistor, For Use With Lexium 15, Lexium 28, Lexium 32, Lexium 05, Lexium 52, Lexium 32i Servo Drive and Motor
Sku #38911920710
MFG #VW3A7601R30
Attributes
| Suitable For Use With: | Lexium 15, Lexium 28, Lexium 32, Lexium 05, Lexium 52, Lexium 32i Servo Drive and Motor |
| Specifications: | 10 Ohm, IP65, 400 W, 3 m L Cable, 7300 J at 400 V, 7300 J at 480 V, 13300 J at 230 V, 18800 J at 115 V Energy Peak, 32 to 122 deg F Ambient Temperature |
- Designed for easy and cost-effective integration of power-intensive drives into cabinets
- IP65|RoHS Compliant|China RoHS
- Enable maximum transient braking torque
- Thermal protection via the servo drive
- Easy to install
Schneider ElectricSchneider Electric VW3A7601R30 Braking Resistor, For Use With Lexium 15, Lexium 28, Lexium 32, Lexium 05, Lexium 52, Lexium 32i Servo Drive and Motor
SKU #38911920710
MFG #VW3A7601R30
