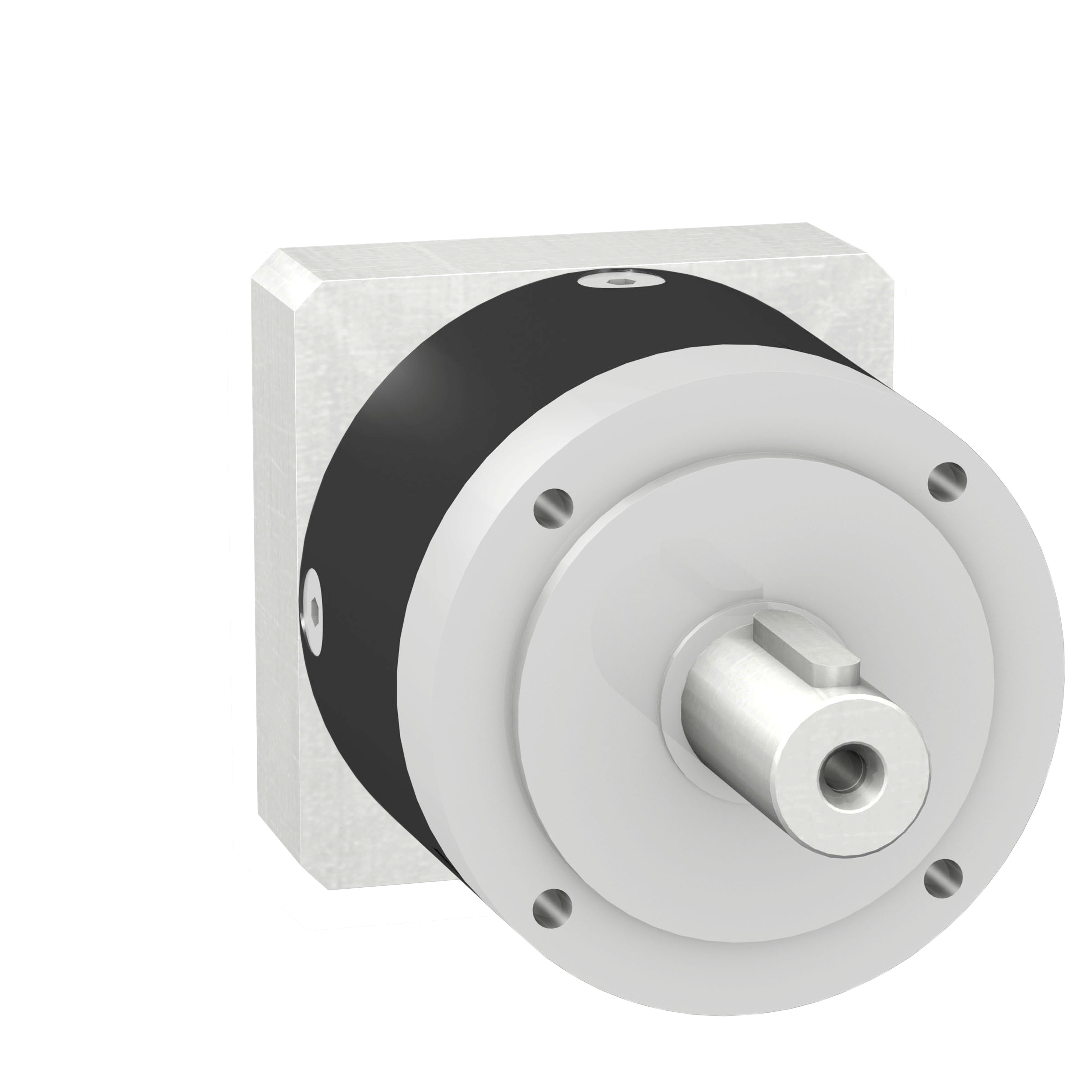

Schneider Electric GBX1600201004F GBX Planetary gearbox, 20:1 gear, 100 rpm maximum output, 800 N-m torque rating
Sku #38911814482
MFG #GBX1600201004F
Attributes
| Type: | Planetary gearbox |
| Gear Ratio: | 20:1 |
| Torque Rating: | 800 N-m |
| Series: | GBX |
| Output Maximum Speed: | 100 rpm |
| Backlash: | 10 arc.min |
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- Straight teeth gear box type
- 6.30 in (160 mm) gearbox external diameter
- 20:1 reduction ratio
- 10 arc.min maximum torsional backlash
- 41 N.m/arcmin torsional rigidity
- Black housing colour
- Black anodized aluminium housing material
- ECCN|EAR99
