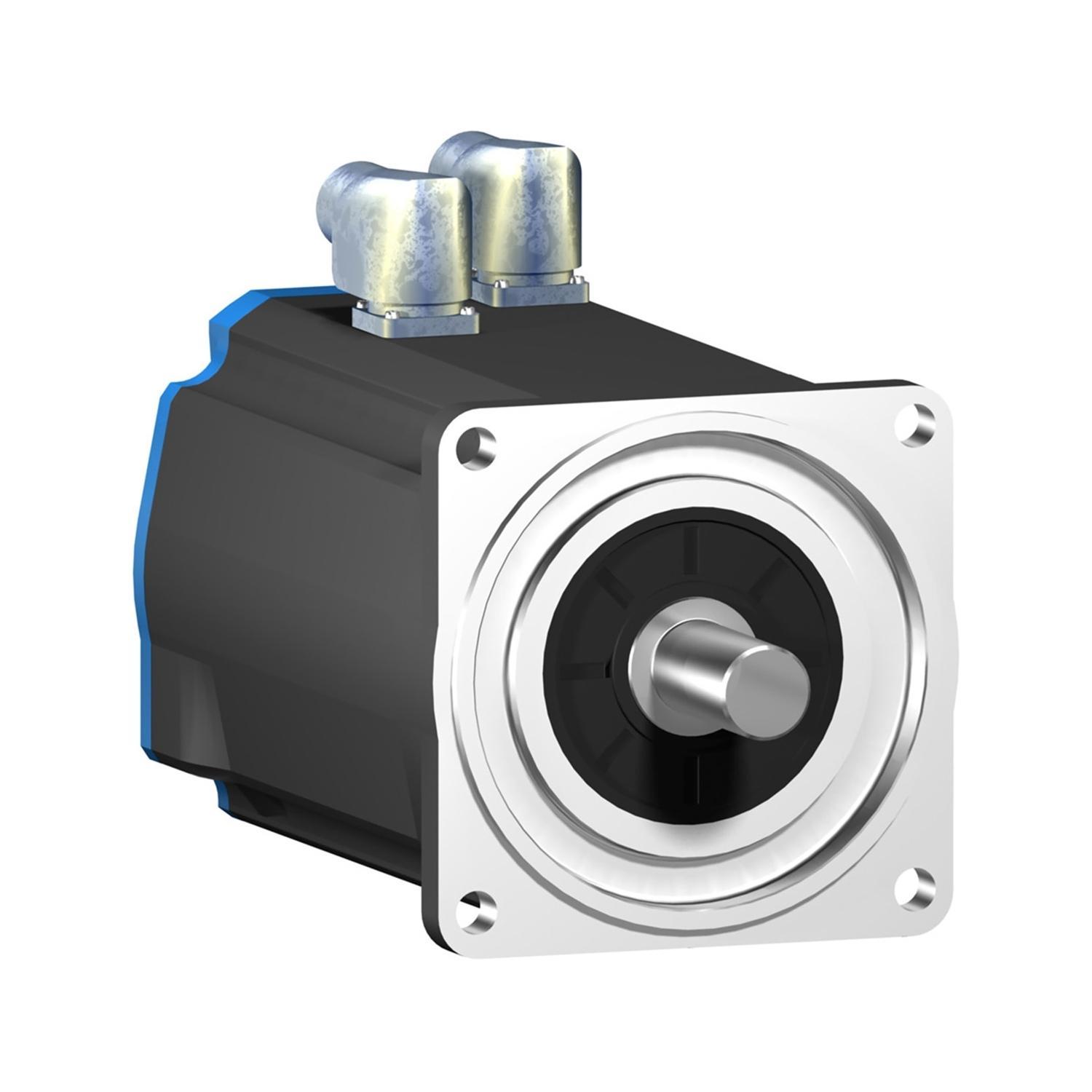

Schneider Electric BSH1401P31F2A BSH Series 1-Stack 10-Poles Keyed, 480 V, 20.8 A, 2500,3000 rpm speed, Flange mount
Sku #38911814094
MFG #BSH1401P31F2A
Attributes
| Type: | 1-Stack 10-Poles Keyed |
| Special Features: | 131072 Points/Turn |
| Amperage Rating: | 20.8 A |
| Series: | BSH Series |
| Voltage Rating: | 480 V |
| Speed: | 2500,3000 rpm |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- This saves on cabinet space and size, reduces the machine footprint and decreases costs
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- With holding brake
- 2500 W LXM32.D30N4 10 A, 400 V, three phase3000 W LXM32.D30N4 10 A, 480 V, three phase2000 W LXM15MD28N4, 400 V, three phase2000 W LXM15MD40N4, 400 V, three phase2200 W LXM05AD34N4, 380 to 480 V, three phase2200 W LXM05BD34N4, 380 to 480 V, three phase2200 W LXM05CD34N4, 380 to 480 V, three phase1400 W LXM15LD28M3, 230 V, three phase1400 W LXM15MD28N4, 230 V, three phase2150 W LXM15MD28N4, 480 V, three phase2150 W LXM15MD40N4, 480 V, three phase nominal output power
- 3.6 W maximum continuous power
- Without second shaft end second shaft
- 1.57 in (40 mm) key width
- Single turn SinCos Hiperface feedback type
- 5.51 in (140 mm) motor flange size
