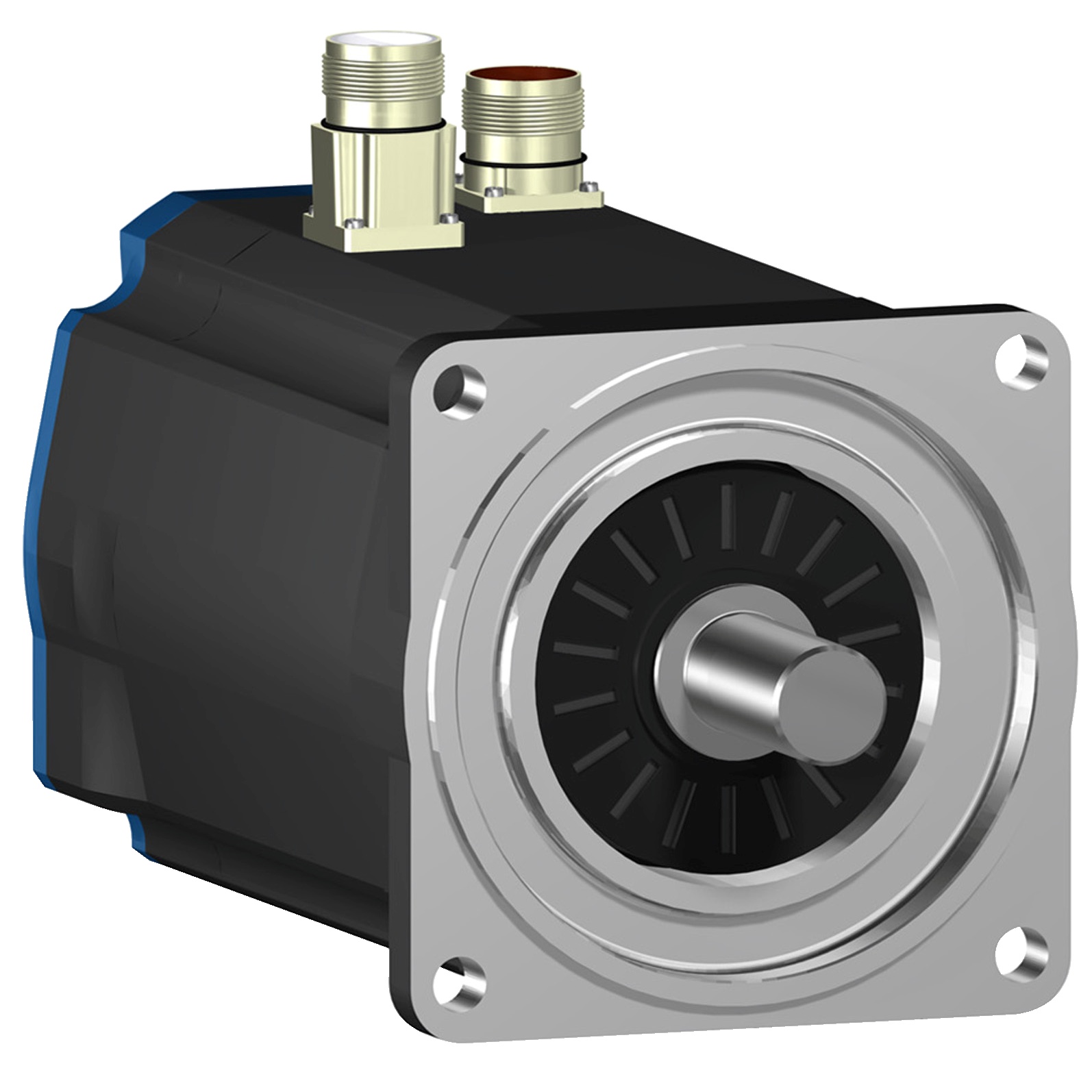

Schneider Electric BSH1001T21A1A BSH Series 1-Stack 8-Poles Untapped, 480 V, 18 A, 2500,3000 rpm speed, Flange mount
Sku #38911813859
MFG #BSH1001T21A1A
Attributes
| Type: | 1-Stack 8-Poles Untapped |
| Special Features: | 131072 Points/Turn |
| Amperage Rating: | 18 A |
| Series: | BSH Series |
| Voltage Rating: | 480 V |
| Speed: | 2500,3000 rpm |
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- This saves on cabinet space and size, reduces the machine footprint and decreases costs
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- Without holding brake
- 700 W LXM32.D30M2 10 A, 115 V, single phase900 W LXM32.D18M2 6 A, 230 V, single phase500 W LXM05AD28F1, 110 to 120 V, single phase500 W LXM05BD28F1, 110 to 120 V, single phase500 W LXM05CD28F1, 110 to 120 V, single phase900 W LXM05AD28M2, 200 to 240 V, single phase900 W LXM05BD28M2, 200 to 240 V, single phase900 W LXM05CD28M2, 200 to 240 V, single phase1150 W LXM15LD28M3, 230 V, three phase900 W LXM05AD42M3X, 200 to 240 V, three phase900 W LXM05BD42M3X, 200 to 240 V, three phase900 W LXM05CD42M3X, 200 to 240 V, three phase nominal output power
- 1.6 W maximum continuous power
- Without second shaft end second shaft
- Single turn SinCos Hiperface feedback type
- 3.94 in (100 mm) motor flange size
- 29 V/krpm 248 deg F (120 deg C) back emf constant
