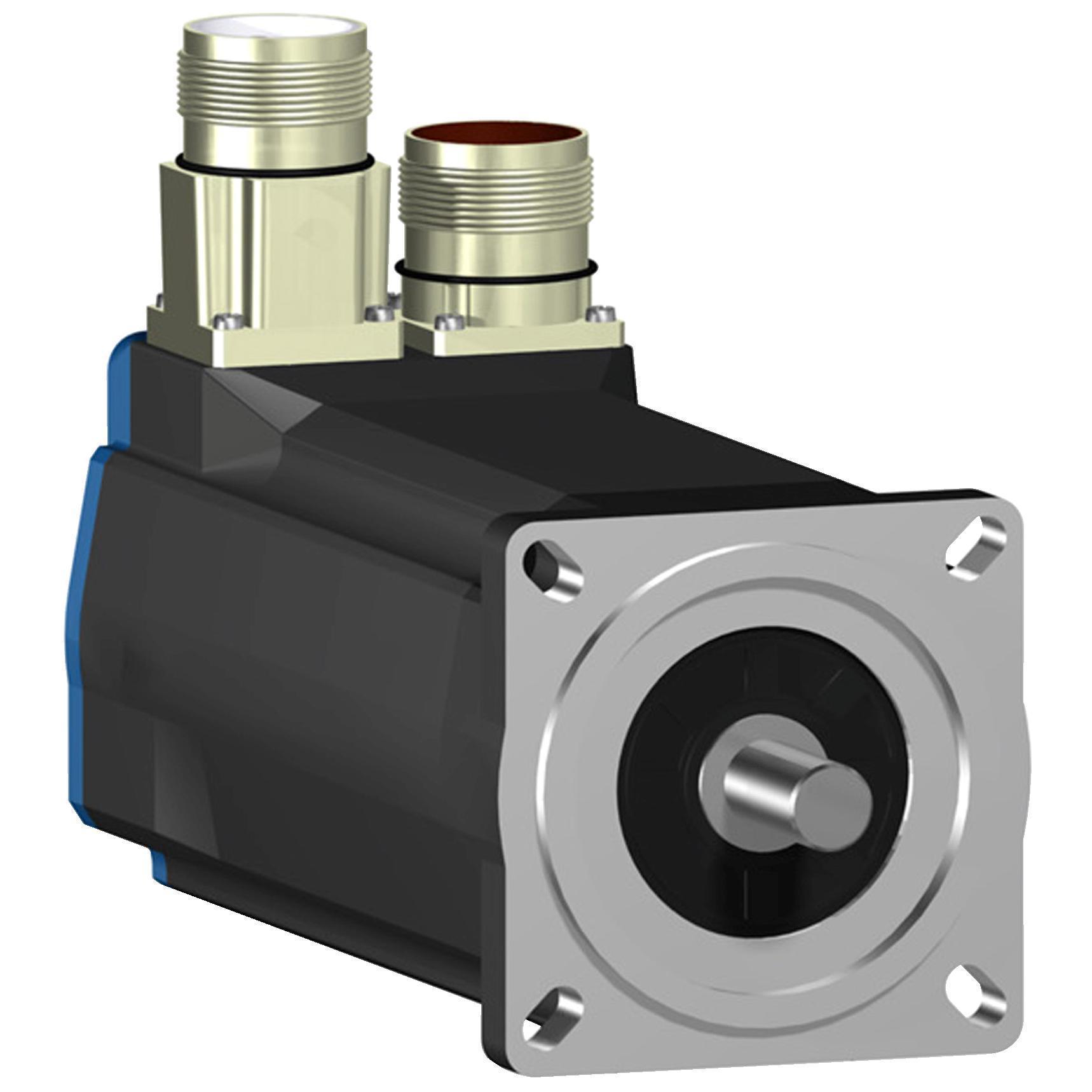

Schneider Electric BSH0702T12F2A BSH Series 2-Stack 6-Poles Keyed, 480 V, 20.6 A, 2500,3000 rpm speed, Flange mount
Sku #38911813663
MFG #BSH0702T12F2A
Attributes
| Type: | 2-Stack 6-Poles Keyed |
| Special Features: | 4096 Turns |
| Amperage Rating: | 20.6 A |
| Series: | BSH Series |
| Voltage Rating: | 480 V |
| Speed: | 2500,3000 rpm |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Three book-size servo drive models and two servo motor families plus a full range of intelligent options
- Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance
- A speed bandwidth of 1,600 Hz provides outstanding response
- With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume
- This saves on cabinet space and size, reduces the machine footprint and decreases costs
- Powerful integration software simplifies the entire process from planning to commissioning
- The new Autotuning function makes tuning easier than ever before
- Lexium 32 offers a host of features for rapid installation and maintenance
- Lexium 32 supports a wide selection of interfaces for fast integration into architectures
- Communication boards, encoder options and accessories adapt your Lexium 32 solution
- Leverage the full power of existing assets such as applications or legacy motors
- "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring
- The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2)
- With holding brake
- 550 W LXM32.D30M2 10 A, 115 V, single phase600 W LXM05AD17M2, 200 to 240 V, single phase600 W LXM05BD17M2, 200 to 240 V, single phase600 W LXM05CD17M2, 200 to 240 V, single phase570 W LXM05AD17F1, 110 to 120 V, single phase570 W LXM05BD17F1, 110 to 120 V, single phase570 W LXM05CD17F1, 110 to 120 V, single phase600 W LXM05AD28M2, 200 to 240 V, single phase600 W LXM05BD28M2, 200 to 240 V, single phase600 W LXM05CD28M2, 200 to 240 V, single phase950 W LXM32.D18M2 6 A, 230 V, single phase1000 W LXM15LD17N4, 230 V, three phase1000 W LXM15LD21M3, 230 V, three phase600 W LXM05AD42M3X, 200 to 240 V, three phase600 W LXM05BD42M3X, 200 to 240 V, three phase600 W LXM05CD42M3X, 200 to 240 V, three phase nominal output power
- 1.51 W maximum continuous power
- Without second shaft end second shaft
- 0.71 in (18 mm) key width
- Multiturn SinCos Hiperface feedback type
- 2.76 in (70 mm) motor flange size
