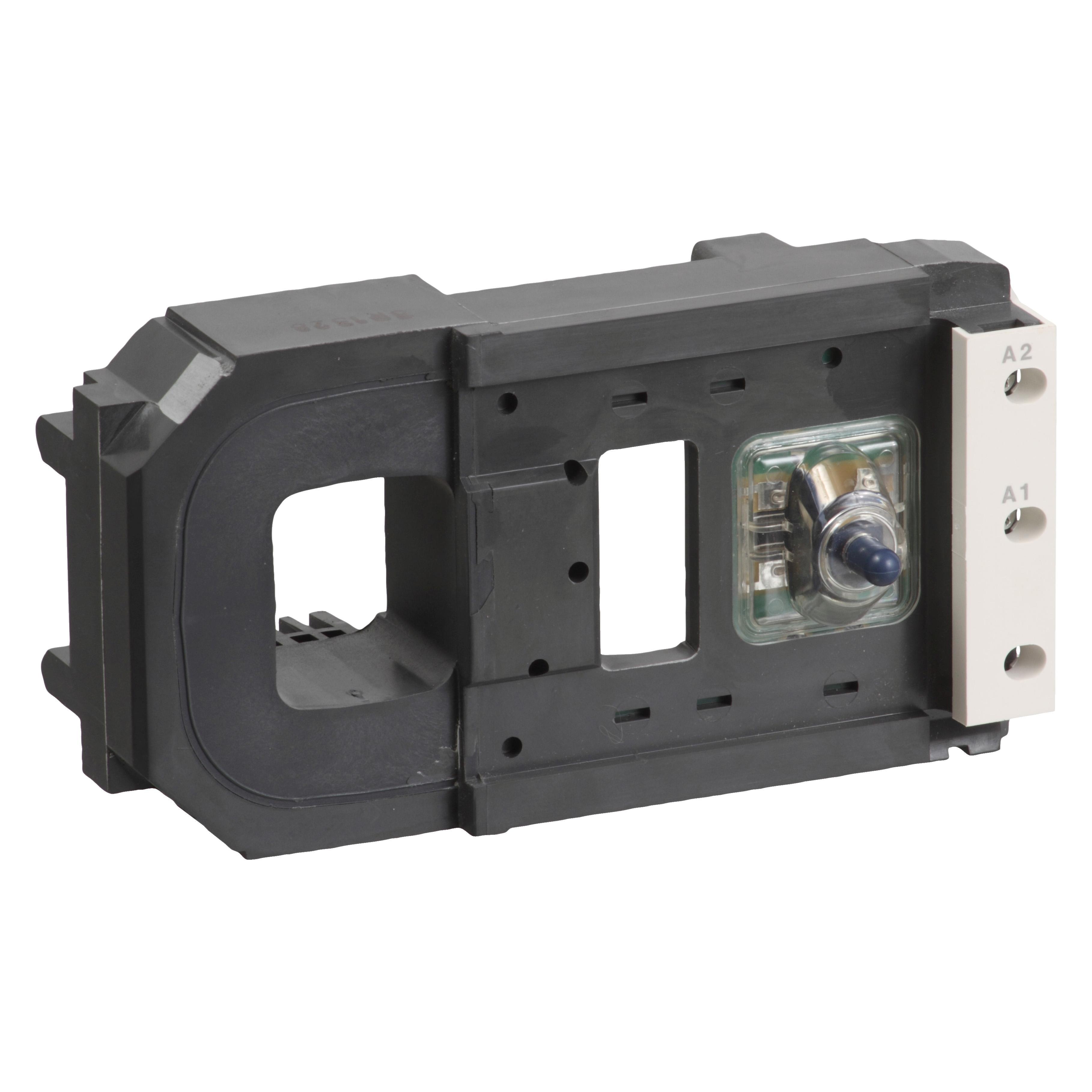

Schneider Electric LX1FK100 LX1FK Contactor coil, 100 V AC, 50/60 Hz, For Use With LC1F500
Sku #38911810876
MFG #LX1FK100
Attributes
| Series: | LX1FK |
| Frequency Rating: | 50/60 Hz |
| Country of Origin: | US |
| Voltage Rating: | 100 V AC |
| Suitable For Use With: | LC1F500 |
- TeSys F contactors are available for the USA market for inductive motor applications from 115 up to 800 full-load amps and resistive loads up to 2100 A
- They offer motor control and overload protection for motors rated up to 800 HP at 480 Vac or 900 HP at 600 Vac
- 2 pole, 3 pole and 4 pole Contactors and Magnetic Latching Contactors
- AC or DC operating coils
- Both North American and international terminal markings
- Replacement parts available
- Arc Chambers
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Solid State Overload Relays
- Class 10 or class 20 overload relays are available from 30 to 630 Aeres
- They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection
- They also include the following features Isolated N.C. trip contact, N.O. alarm contact
- Manual reset button
- Rotary dial for adjustable current settings with tamper resistant window
- Momentary stop button and trip indicator
- Green Premium|RoHS Compliant|REACH Compliant
