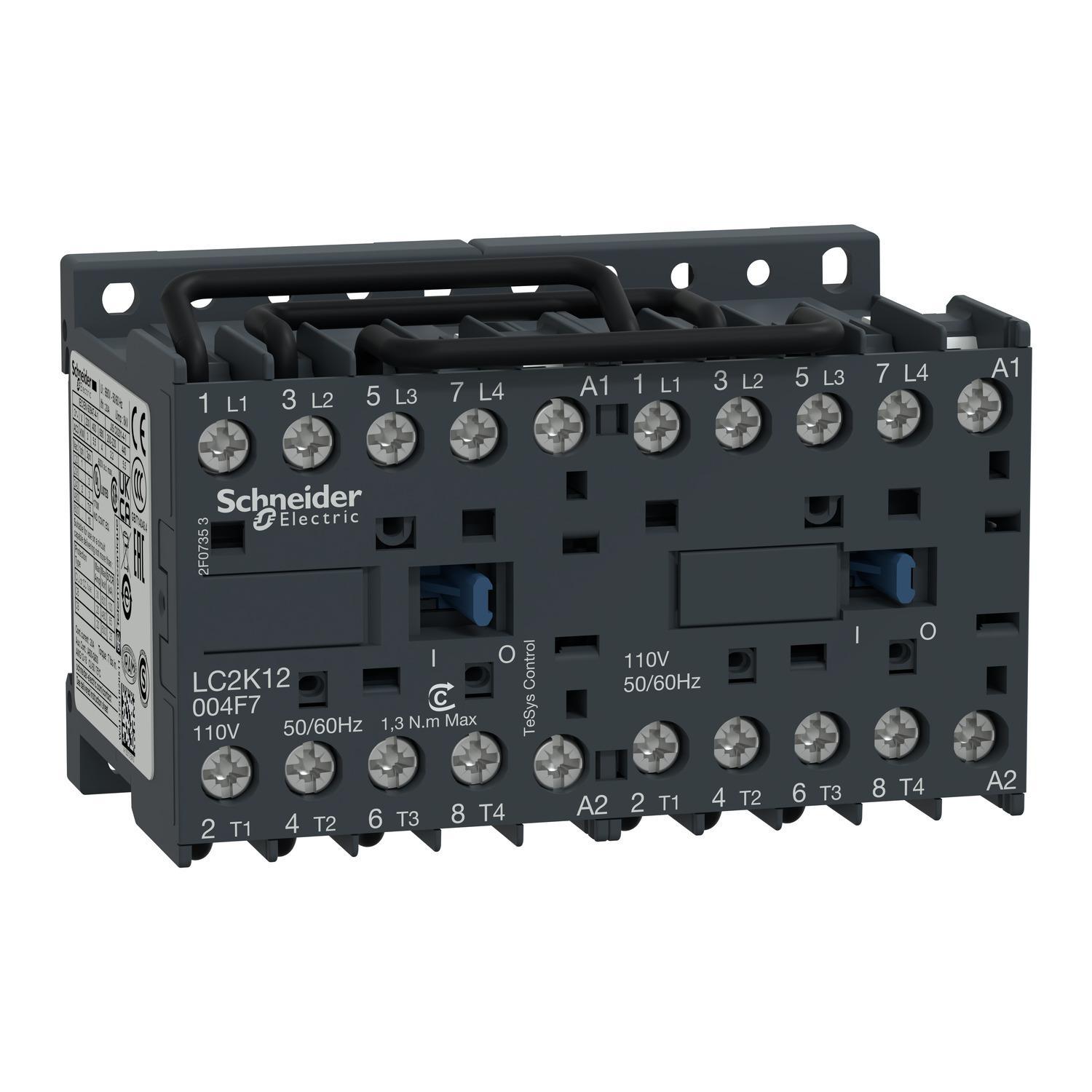

Schneider Electric TeSys™ K LC2K12004F7 K-Line LC2K Changeover IEC Contactor, 110 VAC V Coil, 20 A, 4NO Contact, 4 Poles
Sku #38911809676
MFG #LC2K12004F7
Attributes
| Type: | Changeover |
| Coil Voltage: | 110 V AC |
| Coil Power Rating: | 30 VA Inrush, 4.5 VA Hold-In |
| Series: | K-Line LC2K |
| Maximum Load Current: | 20 A |
| Number of Poles: | 4 |
- 8 kV rated impulse withstand voltage
- III overvoltage category
- 20 A at 122 deg F power circuit conventional free air thermal current
- 25 A gG at 440 V power circuit, 25 A aM power circuit associated fuse rating
- 3 MOhm at 50 Hz, Ith 20 A power circuit average impedance
- Mechanical interlock
- 1.3 N-m on screw clamp terminals with screwdriver Philips® No 2/flat 6 mm Dia tightening torque
- 10 to 20 ms coil de-energization and NO opening, coil energization and NO closing operating time
- 3600 cycles/hr operating rate
- 1.3 W heat dissipation
- TC protective treatment
- 6561.68 ft (2000 m) without derating in temperature operating altitude
- 0.3 M cycles (electrical)/5 M cycles (mechanical) durability
- -58 to 176 deg F storage temperature
- RoHS Compliant|CSA File No. LR43364 Class 3211 04|IEC 60947/VDE 0660|BS 5424|NF C 63-110|UL File No. E164862 NLDX2|CE Marked|eccn: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65Warnings.ca.gov
- For motor control and resistive loads
