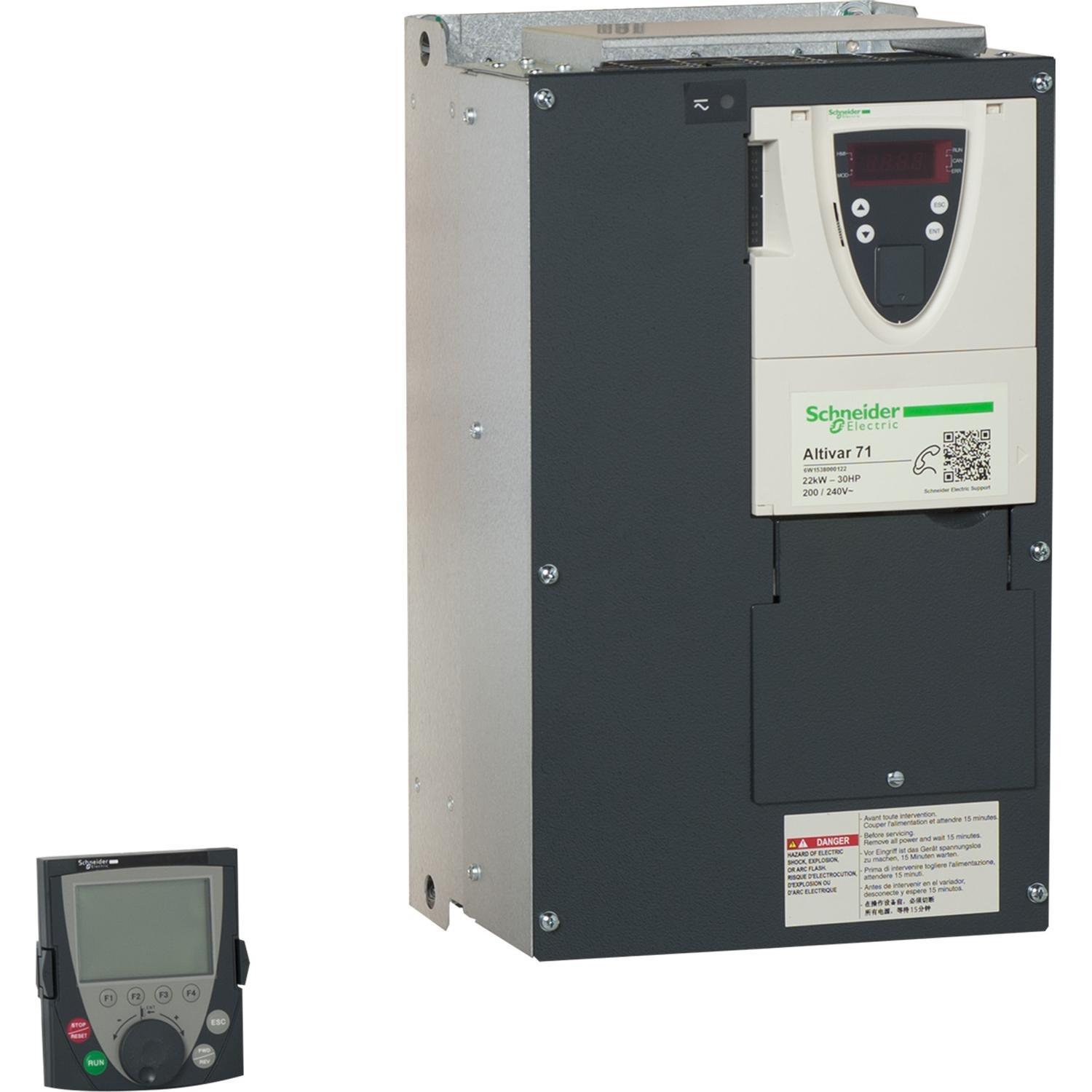

Schneider Electric Altivar™ 71 ATV71HD22M3X 3-Phase Variable Speed Drive, 208/240 VAC, 88 A, 30 hp, 9.45 in W x 9.29 in D
Sku #38911806429
MFG #ATV71HD22M3X
Attributes
| Type: | 3-Phase |
| Amperage Rating: | 88 A |
| Width: | 9.45 in |
| Voltage Rating: | 208/240 V AC |
| Horsepower: | 30 hp |
| Depth: | 9.29 in |
- ABS Certified|CE Marked|CSA Certified|ECCN: EAR99/3A225|Green Premium|NOM 117|DNV Approved|C-Tick.1 Approved|GOST-R Certified|IEC 61000-4-2/61000-4-3/61000-4-4/61000-4-5/61000-4-6/61000-4-11/60721-3-3 Class 3 S2|EN 55011 Class A Group 2|EN/IEC 61800-5-1 UL Type 1|IEC 60721-3-3 Class 3 C1|EN 61800-3 Environments 2 Category C3|EN/IEC 61800-3|EN 61800-3 Environments 1 Category C3|RoHS Compliant|REACH Compliant|WEEE Compliant|UL Listed|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Constant Torque, Complex, High Power Machine, Asynchronous and Synchronous Motor, Material Handling, Hoisting, Wood Machin, Process Machine, Textile Machines and Packaging Application
- Protection of motor and of drive
- Power removal, ATEX safety function
- Integrated EMC filter class A
- I/O extension card, interface card for encoder, controller inside programmable card
- Controller inside programmable card
- 30 hp at 200 to 240 VAC 3 ph horsepower rating
- 80 A at 240 VAC 3 ph 22 kW/30 hp, 88 A at 200 VAC 3 ph 22 kW/30 hp amperage rating
- 88 A at 30 hp amperage rating
- Without EMC filter
