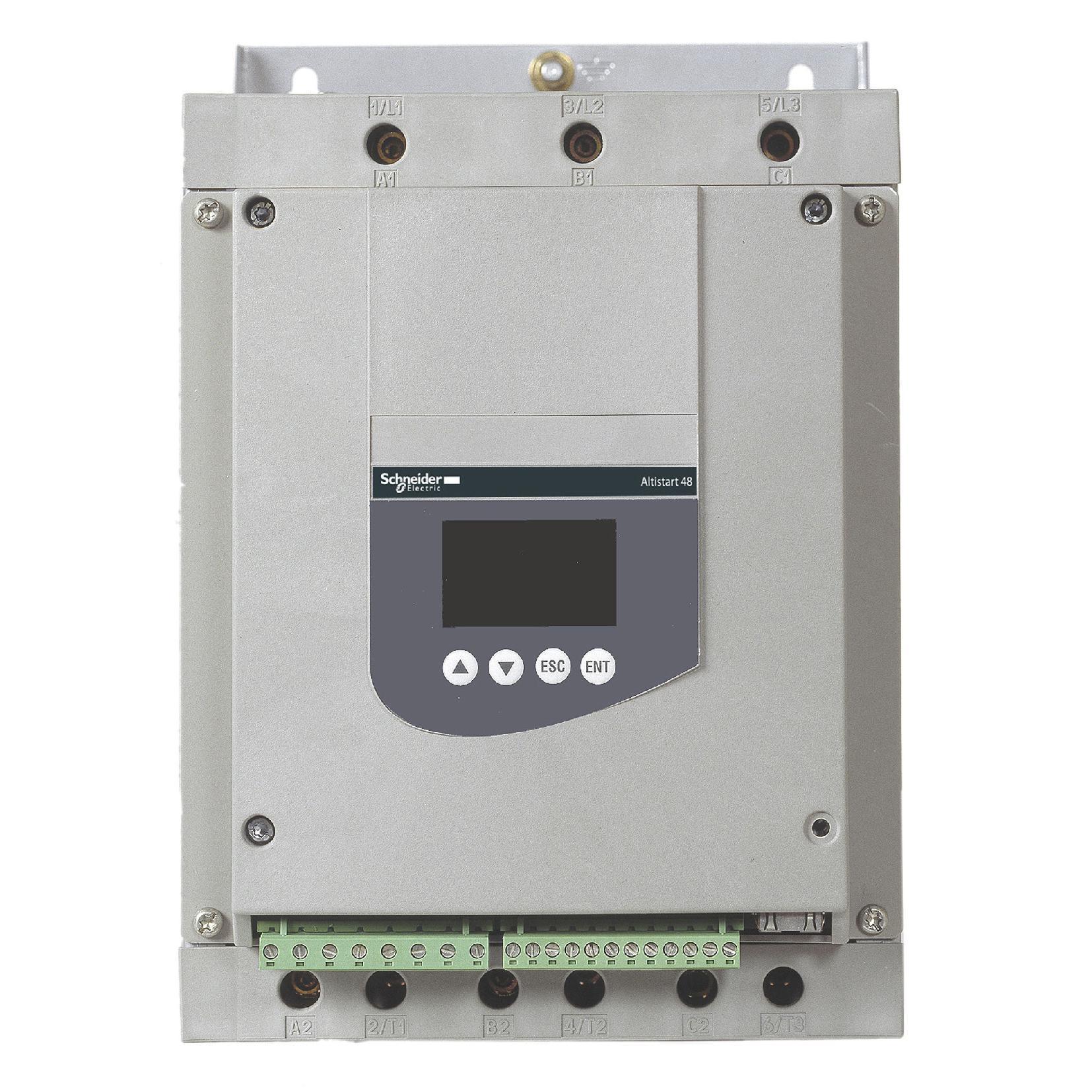

Schneider Electric Altistart 48 Square D™ ATS48D22Y Soft Starter With Heat Sink, IP20 Enclosure
Sku #38911098221
MFG #ATS48D22Y
Attributes
| Series: | ATS48 |
| Amperage Rating: | 22 A |
| Motor Power: | 5 hp, 7-1/2 hp, 11 hp, 15 hp, 20 hp |
| Voltage Rating: | 177 to 759 V AC |
| Frequency Rating: | 50/60 Hz |
| Phase: | 3 |
- RoHS Compliant|IEC/EN 60947-4-2|CE Certified|UL Listed|CSA Certified|DNV Listed|C-Tick Certified|GOST-R Certified|CCC Certified|NOM Certified|SERPRO Certified|TCF Certified|IEC 61000-4-4|IEC 61000-4-3|IEC 61000-4-5|IEC 61000-4-2|IEC 61000-4-12|IEC 60947-4-2|REACH Compliant|WEEE Compliant|Green Premium|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- Performance with exclusive torque control system (TCS)
- 30% smaller than the Altistart® 46
- 3-seven segment displays
- Thermal protection by I2t calculation
- Thermal protection with PTC probes
- Simplified wiring with top and bottom connections
- Integrated ModBus protocol
- POWERSUITE™ software, 3-current sensors
- Overload detection function
- Automatic restart
- Integrated functional keypad
- SCRs designed with 1800 V PIV ratings
- +/-5% frequency tolerance
- 5 hp at 208 VAC, 7.5 hp at 230 VAC, 11 hp at 400 VAC, 15 hp at 460 VAC, 20 hp at 575 VAC motor rating
- Asynchronous Motors, Pumps, Fans and High Inertia Machines, Compressors, Conveyors, Heavy Duty Industry and Ventilation Machine Applications
