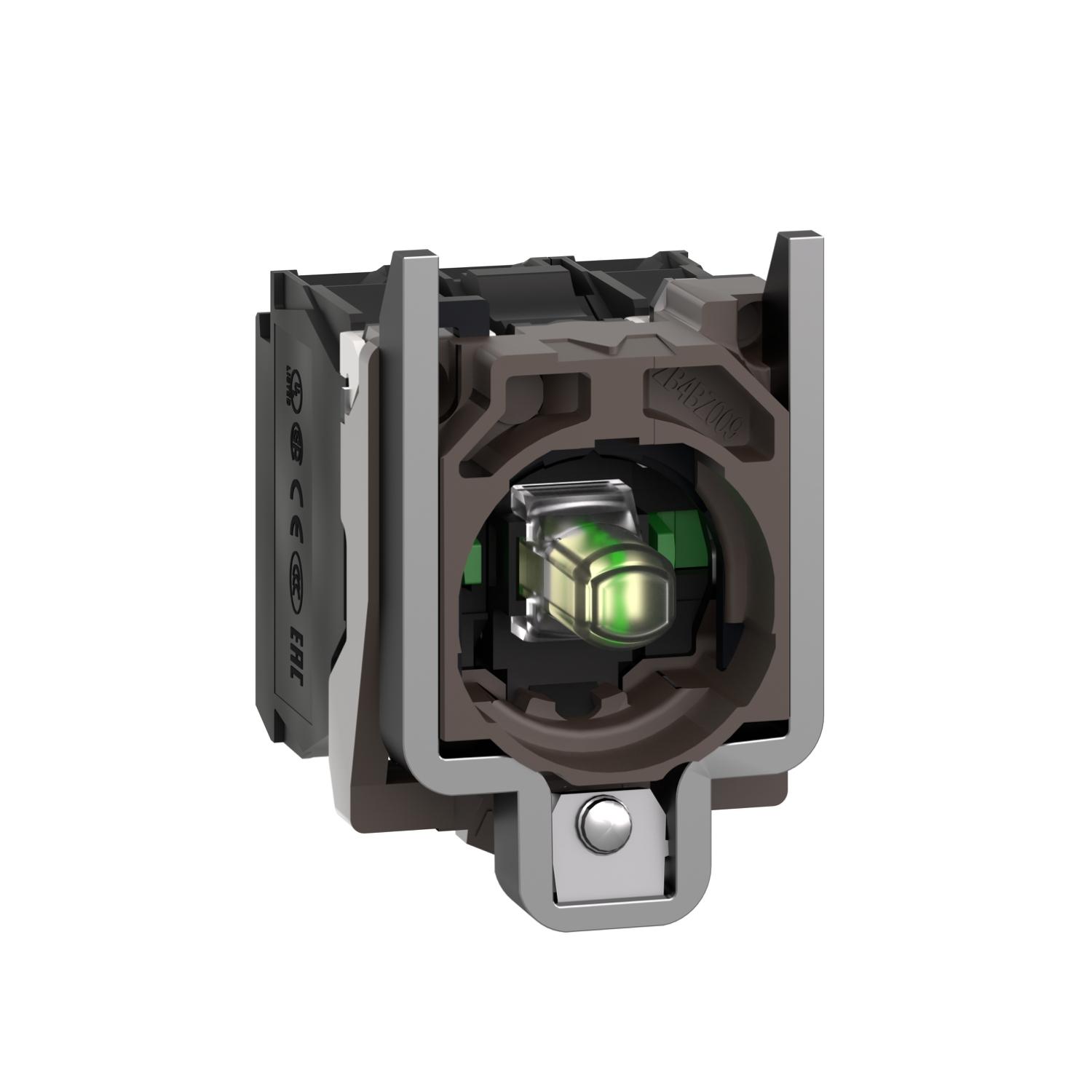

Schneider Electric ZB4BW0M13 ZB4 Standard Contact Assembly & Light Block, 22 mm, LED Lamp, 2NO Contact, 230 to 240 V AC, White
Sku #38911089352
MFG #ZB4BW0M13
Attributes
| Type: | Standard |
| Size: | 22 mm |
| Contact Configuration: | 2NO |
| Series: | ZB4 |
| Lamp Type: | LED |
| Contact Rating: | 6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC |
- CSA C22.2 No 14|JIS C8201-5-1|UL 508|JIS C8201-1|LROS (Lloyds register of shipping)|GL|BV|DNV|IEC 61000-2-6|IEC 60068-2-27|IEC 61000-4-5|IEC 60068-2-6|IEC 61000-4-3|EN/IEC 60947-5-1|EN/IEC 60947-5-5|EN/IEC 60947-1|IEC 61000-4-4|EN/IEC 60947-5-4
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- Excellent mechanical connection with operator head
- Large set of accessories to customize your panels
- https://youtu.be/9pxL9u54fN0?si=3DYkkIcpaVCSAsyq
Schneider ElectricSchneider Electric ZB4BW0M13 ZB4 Standard Contact Assembly & Light Block, 22 mm, LED Lamp, 2NO Contact, 230 to 240 V AC, White
SKU #38911089352
MFG #ZB4BW0M13
