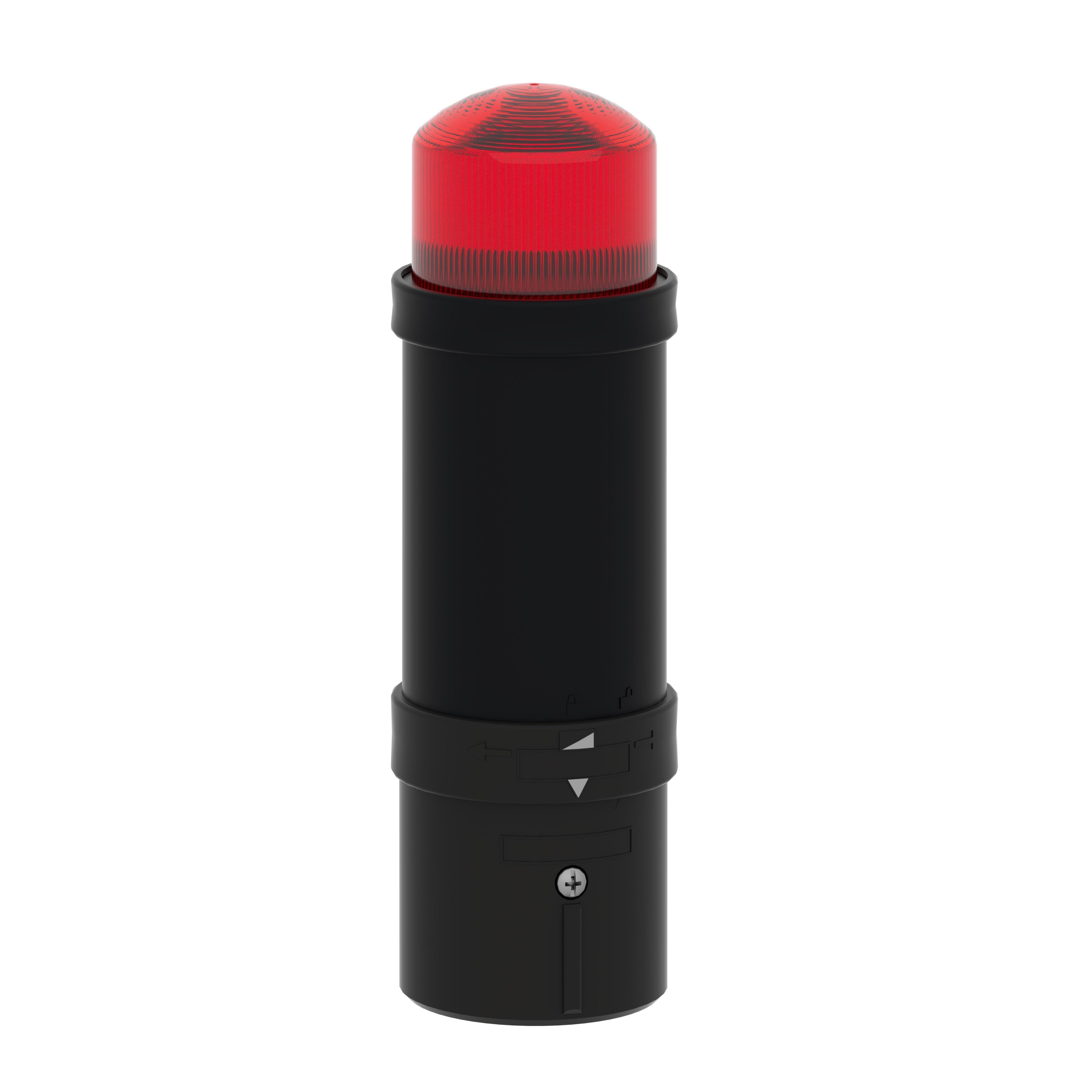

Schneider Electric XVBL8M4 XVB Complete beacon, 230 VAC, NEMA 4X nema rating
Sku #38911084497
MFG #XVBL8M4
Attributes
| Type: | Complete beacon |
| Voltage Rating: | 230 V AC |
| Diameter: | 2.76 in |
| Series: | XVB |
| Amperage Rating: | < 280 mA AC |
| Flash Type: | Flashing |
- IP66 high degree of protection
- Meets International standards: CE, UL, CCC, CSA, Ghost
- Modular construction of up to 5 lens units (6 colors of illuminated lens units): simple interchangeability of units
- Simple assembly of lens units enables immediate access when changing bulbs, automatic electrical connection between lens units
- 10 Watt incandescent bulb, built-in high-efficiency LEDs, 5 and 10 joule discharge tube types of light source
- 100,000 hours of maintenance-free lighting with "LED Protected" technology
- Base unit direct or tube fixingIlluminated unit beacon or indicator bank unit type
- Flashing signalling type
- Flash discharge tube bulb type
- 250 V IEC 60947-1 ui rated insulation voltage
- 0.85 to 1.1 Un conforming to IEC 60947-5-1 nominal voltage limit
- 4 kV IEC 60947-1 uimp rated impulse withstand voltage
- 10 J flash energy
- (GND)GROUND(COM-1)PW terminals description ISO n deg 1
- TC protective treatment
- Class I on support tube IEC 61140Class II on base unit IEC 61140 electrical shock protection class
- For tower light, For operation in harsh environments
- EN/IEC 60947-5-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov|GOST|UL 508|CCC|CSA C22-2 No 14
