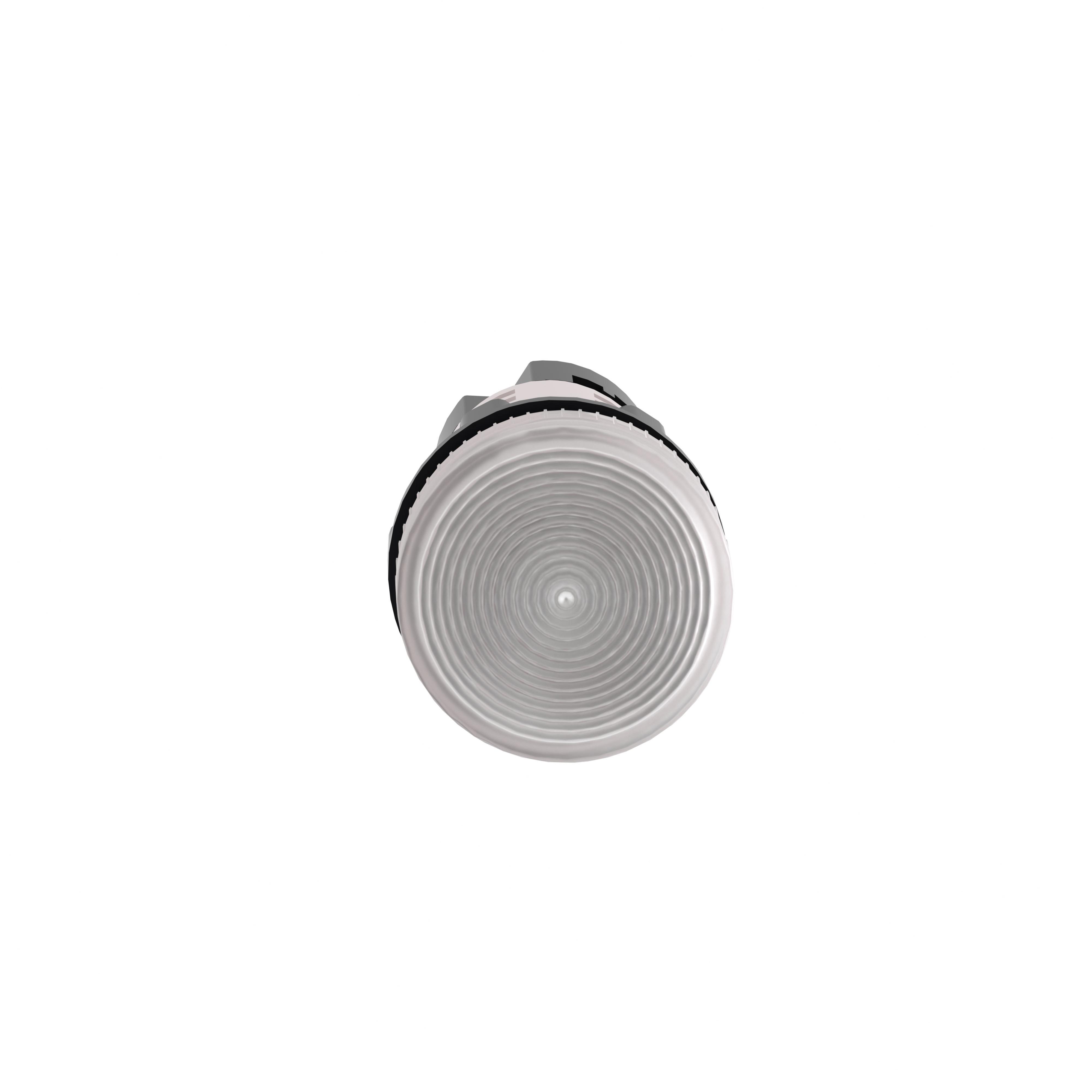

Schneider Electric XB7EV67P XB7 Series Pilot Light, 250 V, Panel mount
Sku #38911083962
MFG #XB7EV67P
Attributes
| Type: | Pilot Light |
| Voltage Rating: | 250 V |
| Lamp Type: | LED |
| Series: | XB7 Series |
| Lens Color: | Clear |
| Color: | Clear |
- The XB7 Line is an all-in-one push button with the operators on the back of the operator
- With momentary & maintained push buttons, illuminated push buttons and pilot lights with LEDs, mushroom head emergency stop buttons with snap-action locking, and 2 position and 3 positionA selector switches, etc. the monolithic option is a viable alternative to the modular ranges and is a more compact design
- Monolithic product device presentation
- (X1-X2)PL terminals description ISO n deg 1
- Class II IEC 60536 overvoltage category
- Fixing hole 0.89 in (22.5 mm) 22.3 +0.4/0 EN/IEC 60947-5-1 device mounting
- >= 30 x 40 mm support panel) metal 04 to 0.24 in (1 to 6 mm)>= 30 x 40 mm support panel) plastic 08 to 0.24 in (2 to 6 mm) fixing center
- Fixing nut beneath head 17.70 to 21.24 lbf.in (2 to 2.4 N.m) fixing mode
- Clear cap/operator or lens colour
- 250 V 3)EN/IEC 60947-1 ui rated insulation voltage
- 6 kV EN/IEC 60947-1 uimp rated impulse withstand voltage
- Steady signalling type
- Direct light block supply
- XB7 compatibility code
- TH protective treatment
- With toxic heavy metal free
- For BA9s bulb, For operation in low pressure environments
- JIS C8201-5-1|UL 508|EN/IEC 60947-1EN/IEC 60947-5-1|CSA C22.2 No 14|JIS C8201-1|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
