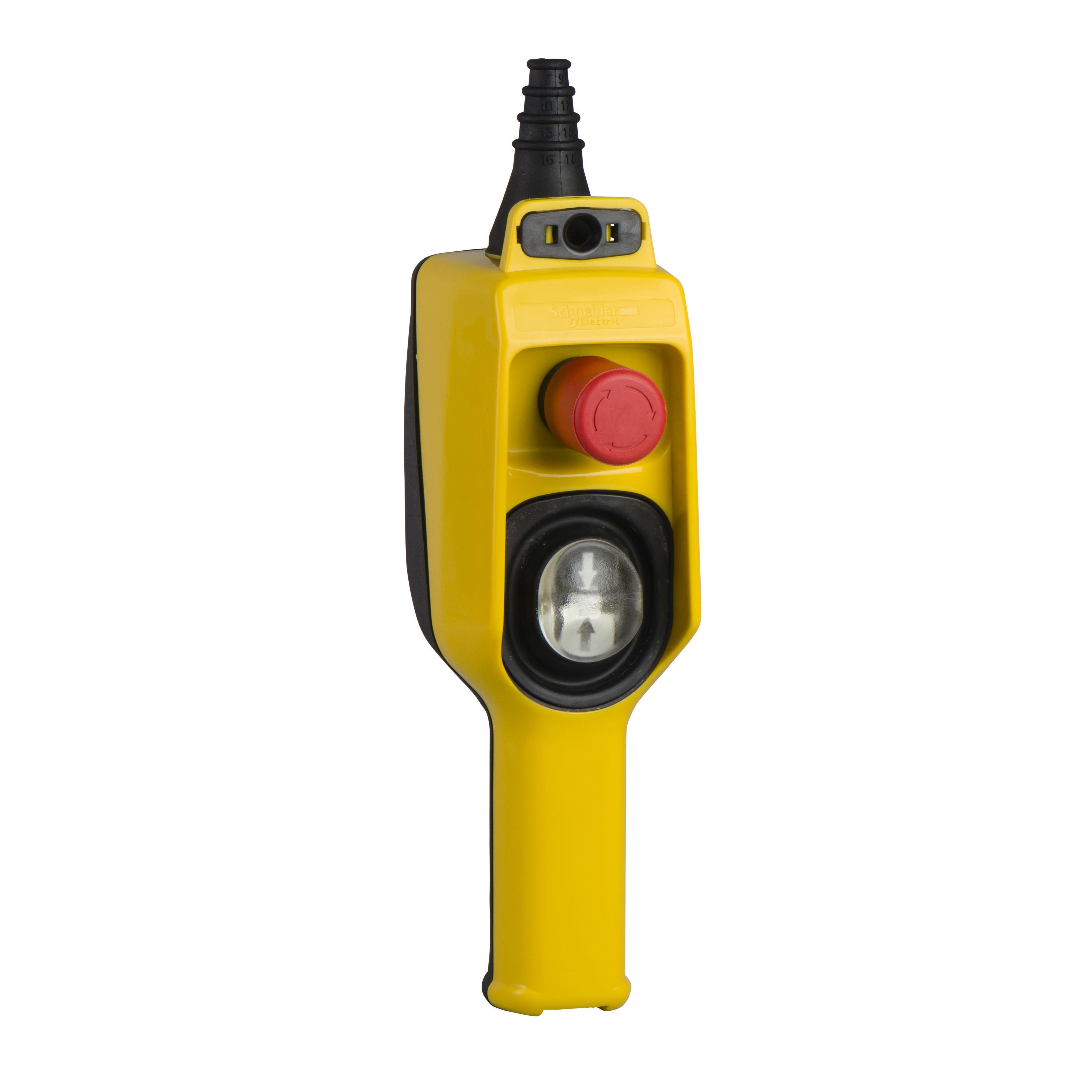

Schneider Electric Harmony™ Square D™ XACD22A0101 Corrosion-Resistant Double Insulated Dusttight/Watertight Medium Duty Pendant Control Station, 600 V AC, 10 A, 2NO-1NC Contact, 1 Operators, NEMA 4/4X/5/IP65 NEMA Rating
Sku #38911065592
MFG #XACD22A0101
Attributes
| Type: | Corrosion-Resistant Double Insulated Dusttight/Watertight Medium Duty |
| Voltage Rating: | 600 V AC |
| Number of Operators: | 1 |
| Series: | XAC |
| Amperage Rating: | 10 A |
| Contact Configuration: | 2NO-1NC |
- IK08 conforming to EN 50102;CSA C22.2 No 14;UL 508;EN/IEC 60204-32;EN/IEC 60947-5-1;70 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
- Hoisting Industry, Building, Material Handling, Drilling and Indoor/Outdoor Applications
- Pendant control stations for custom 22 mm pushbuttons with pre-assembled and un-assembled versions and various hole size options between 2-12 holes
- Single and 2-speed versions with 2, 4, 6, 8 and 12 number of hole versions
- Momentary or maintained contacts with or without mechanical interlocks
- High impact thermoplastic enclosure with self-extinguishing flammability rating (UL 94V) with NEMA 4, 4X, 5, IP65 deg of protection
- Beside pre-built versions, all other orders are custom
- Simple, reliable operator pendant control stations
- Designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of UL and IEC standards
- XAC pendants are not only simple and intuitive, but also very ergonomic for the operator
- https://www.youtube.com/embed/P5ukp5nsyNI
