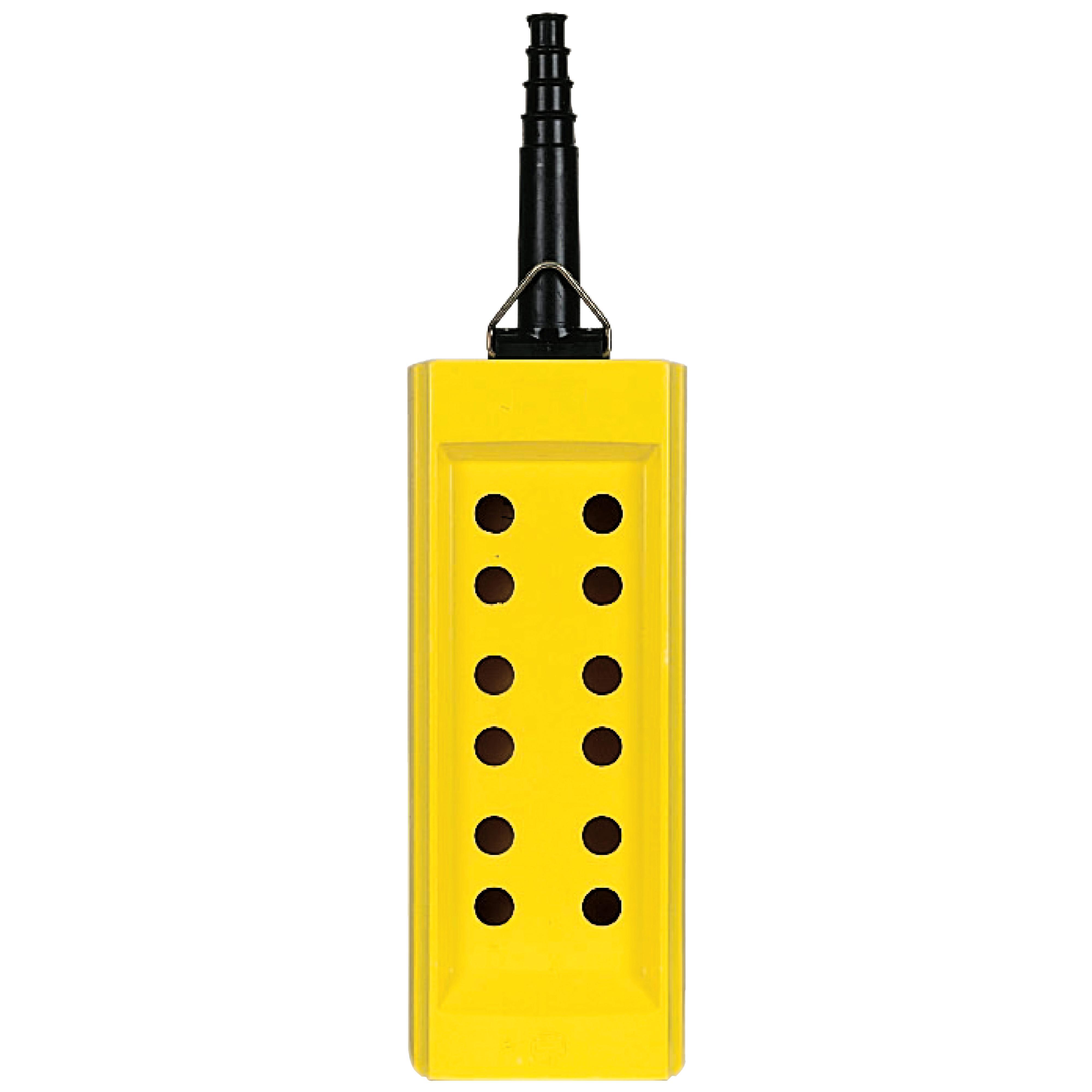

Schneider Electric XACB121 XACB Pendant control station
Sku #38911064066
MFG #XACB121
Attributes
| Type: | Pendant control station |
| Operating Temperature: | -13 to 158 deg F |
| Country of Origin: | CZ |
| Series: | XACB |
| Material: | Glass Reinforced Polyester |
- Control circuit,Power circuit
- CSA type 4;IK08 conforming to IEC 62262;CSA C22.2 No 14;IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
- 1 or 2 speed up, down, right, and left movements function with emergency stop option available
- XACA- / XACB- / XACD- / XACM- perdant types
- Single and two-speed versions with 2, 4, 6, 8, 12 number of hole versions
- Momentary or maintained contacts with or without mechanical interlocks
- Yellow-colored pendants only
- Beside pre-built versions, all other orders are custom
- XACA available with pistol grip
- Double insulated control station type
- 12 cut-outs number of cut-out
- Yellow control station colour
- Rubber sleeve with stepped entry 0.39 to 0.87 in (10 to 22 mm) cable entry
- Without guard rail
- 1.57 in (40 mm) vertical operator cut-out centre
- TH protective treatment
- Class II IEC 61140 overvoltage category
- 1000000 cycles mechanical durability
- With toxic heavy metal free
