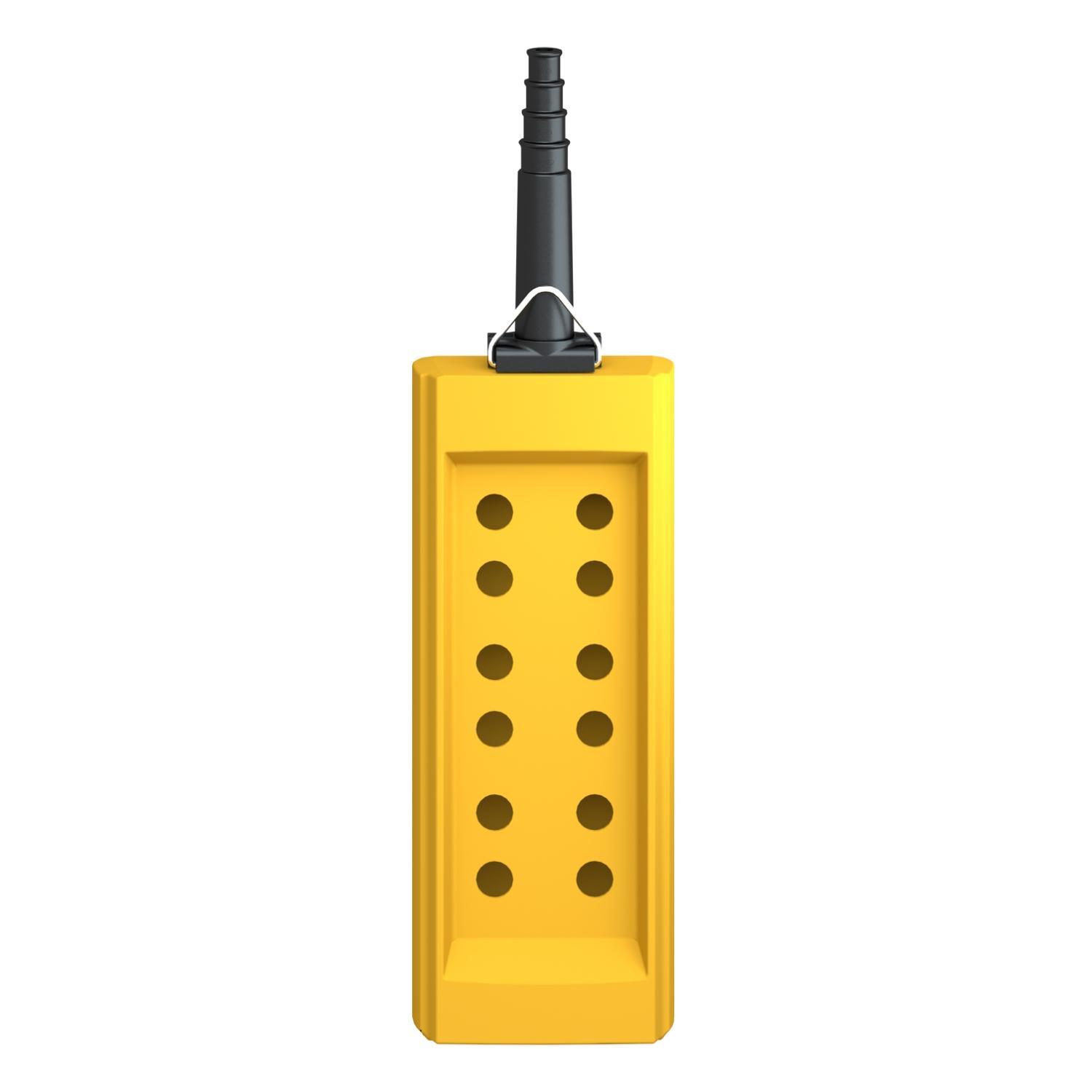

Schneider Electric Harmony™ Square D™ XACB12 12-Cutout Double Insulated Medium Duty Pendant Control Station, NEMA 4/4X/5/IP65 NEMA Rating
Sku #38911064056
MFG #XACB12
Attributes
| Type: | 12-Cutout Double Insulated Medium Duty |
| Actuator: | Pushbutton |
| Operating Temperature: | -25 to 70 deg C |
| Series: | XAC |
| NEMA Rating: | NEMA 4/4X/5/IP65 |
| Material: | Glass Reinforced Polyester |
- Pendant control stations for custom 22 mm pushbuttons with pre-assembled and un-assembled versions and various hole size options between 2-12 holes
- Single and 2-speed versions with 2, 4, 6, 8 and 12 number of hole versions
- Momentary or maintained contacts with or without mechanical interlocks
- High impact thermoplastic enclosure with self-extinguishing flammability rating (UL 94V) with NEMA 4, 4X, 5, IP65 deg of protection
- Beside pre-built versions, all other orders are custom
- Simple, reliable operator pendant control stations
- Designed for mechanical handling, these highly robust pendant control stations comply with the safety requirements of UL and IEC standards
- XAC pendants are not only simple and intuitive, but also very ergonomic for the operator
- Without guard rail
- https://www.youtube.com/embed/P5ukp5nsyNI
- Hoisting Industry, Building, Material Handling and Drilling
- CSA type 4;IK08 conforming to IEC 62262;CSA C22.2 No 14;IEC 60947-5-1;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
