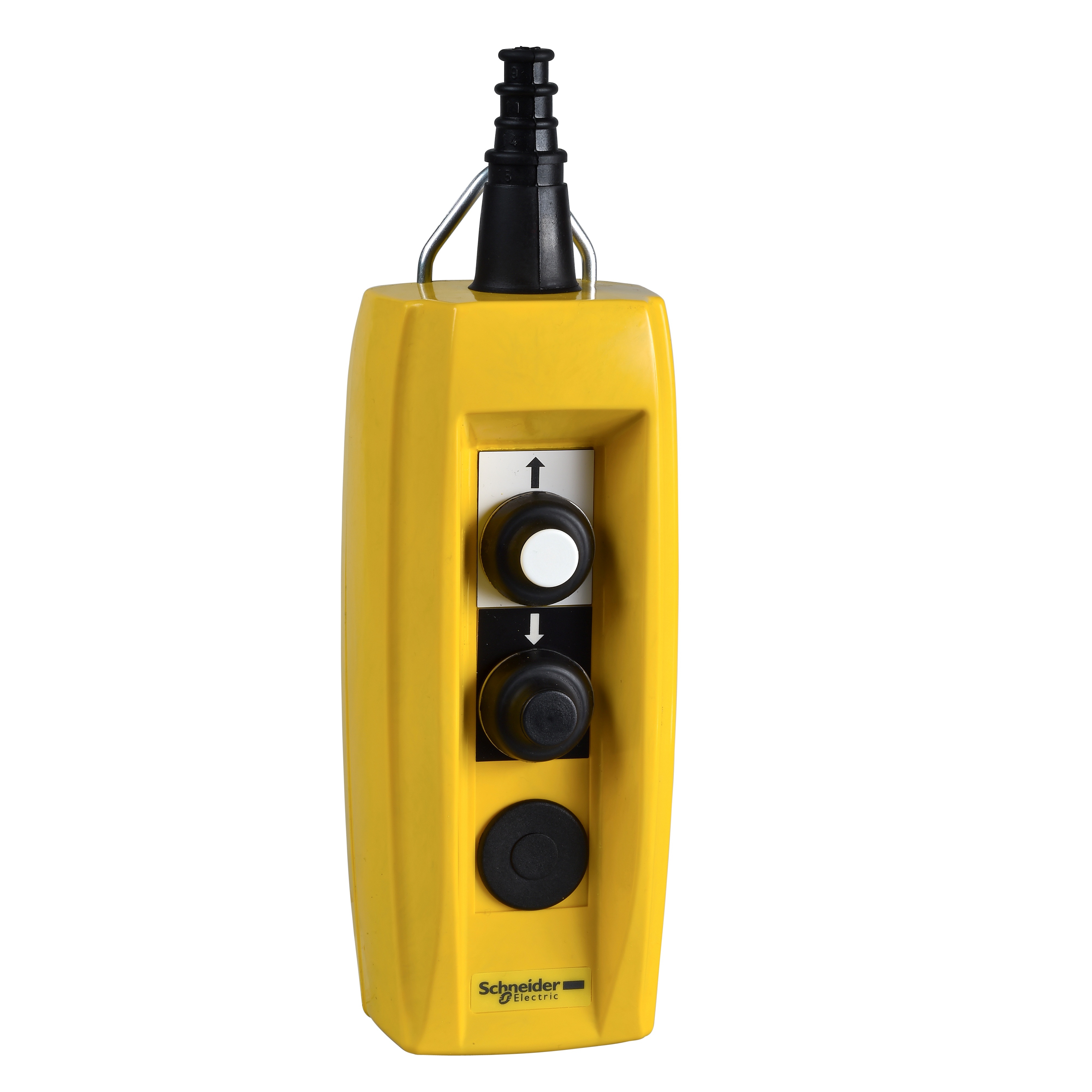

Schneider Electric XACB219 XACB Pendant control station, Snap action contact
Sku #38911063615
MFG #XACB219
Attributes
| Type: | Pendant control station |
| Contact Type: | Snap action |
| Enclosure Type: | IP65 |
| Series: | XACB |
| Terminal Type: | Screw Clamp |
| Temperature Rating: | -13 to 158 deg F |
- 1 or 2 speed up, down, right, and left movements function with emergency stop option available
- XACA- / XACB- / XACD- / XACM- perdant types
- Single and two-speed versions with 2, 4, 6, 8, 12 number of hole versions
- Momentary or maintained contacts with or without mechanical interlocks
- Yellow-colored pendants only
- Beside pre-built versions, all other orders are custom
- XACA available with pistol grip
- Double insulated control station type
- Control of single speed hoist motor control station application
- 2 push-buttons control station composition
- First push-button 2-pole raise, slowSecond push-button 2-pole lower, slow control button type
- With mechanical interlocking mechanical interlocking
- Yellow control station colour
- TH protective treatment
- Class II IEC 61140 overvoltage category
- 1000000 cycles mechanical durability
- Rubber sleeve with stepped entry 0.39 to 0.87 in (10 to 22 mm) cable entry
- 500 V 3)IEC 60947-1 600 VCSA ui rated insulation voltage
- 6 kV IEC 60947-1 uimp rated impulse withstand voltage
- Power circuit,Control of single speed hoist motor
- CSA type 4;CSA C22.2 No 14;IEC 60947-5-1;IEC 60204-32;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
