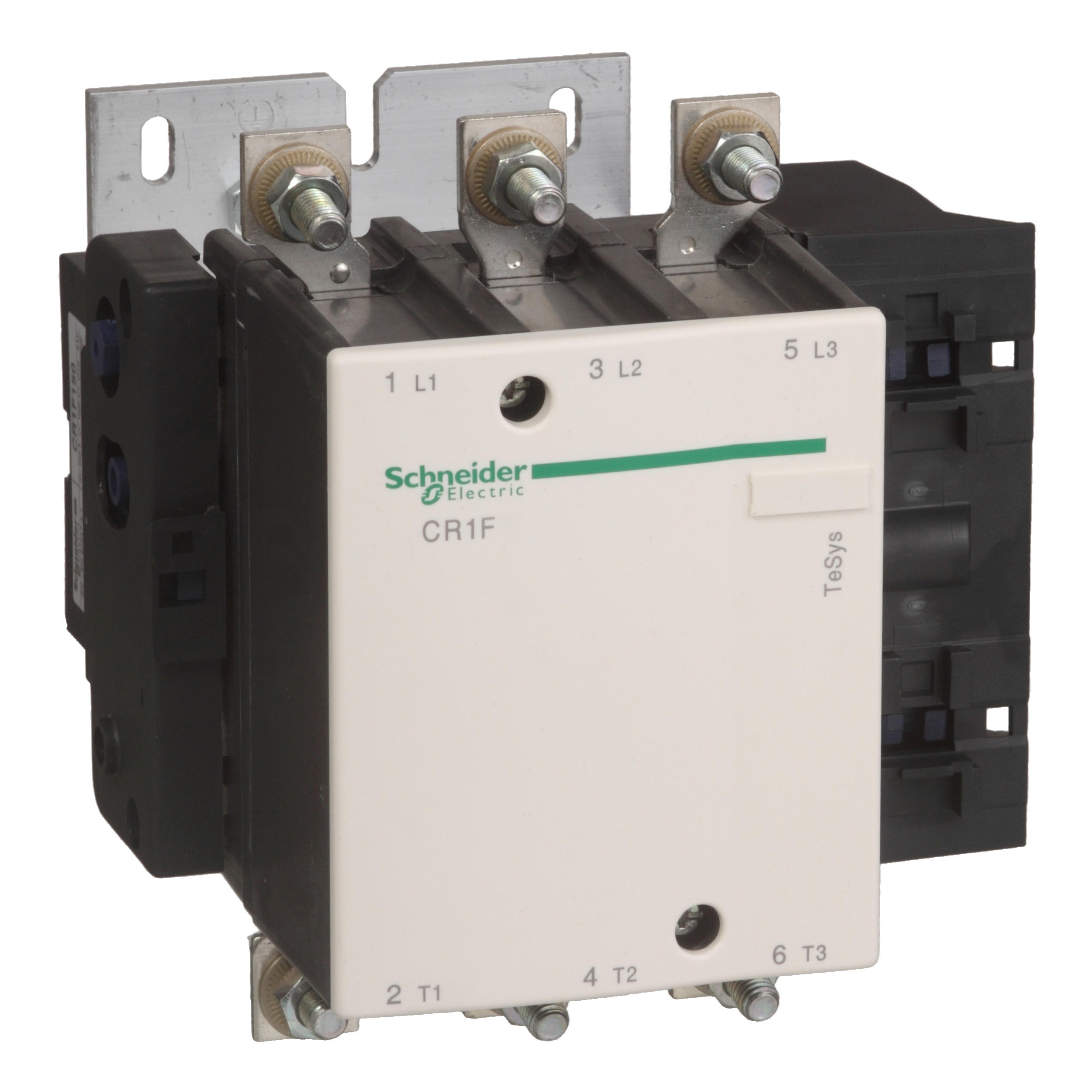

Schneider Electric CR1F265F7 CR1F Series Magnetic Latching Contactor, 110 V AC,110 V DC v coil, 245 to 350 A, 3NO contact, 3 poles
Sku #38911054833
MFG #CR1F265F7
Attributes
| Type: | Magnetic Latching Contactor |
| Coil Voltage: | 110 V AC,110 V DC |
| Number of Poles: | 3 |
| Series: | CR1F Series |
| Maximum Load Current: | 245 to 350 A |
| Frequency Rating: | 50 to 400 Hz |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Clear and direct state indication from Closed to Open by current signal through the coil
- Unaffected by mains interference
- Utilisation of contactors beyond their breaking capacity
- Save energy - the coils is applied by pulsed contacts with no impact on closed contactors
- High reliability - environments tolerance up to 70C
- For latching and unlatching, bolt terminals for bars or cables with lugs, For contactors remaining in closed state for long periods, For motor applications up to 132kW, For operating rates until 120 cycles/hour and environments until 70 deg C
