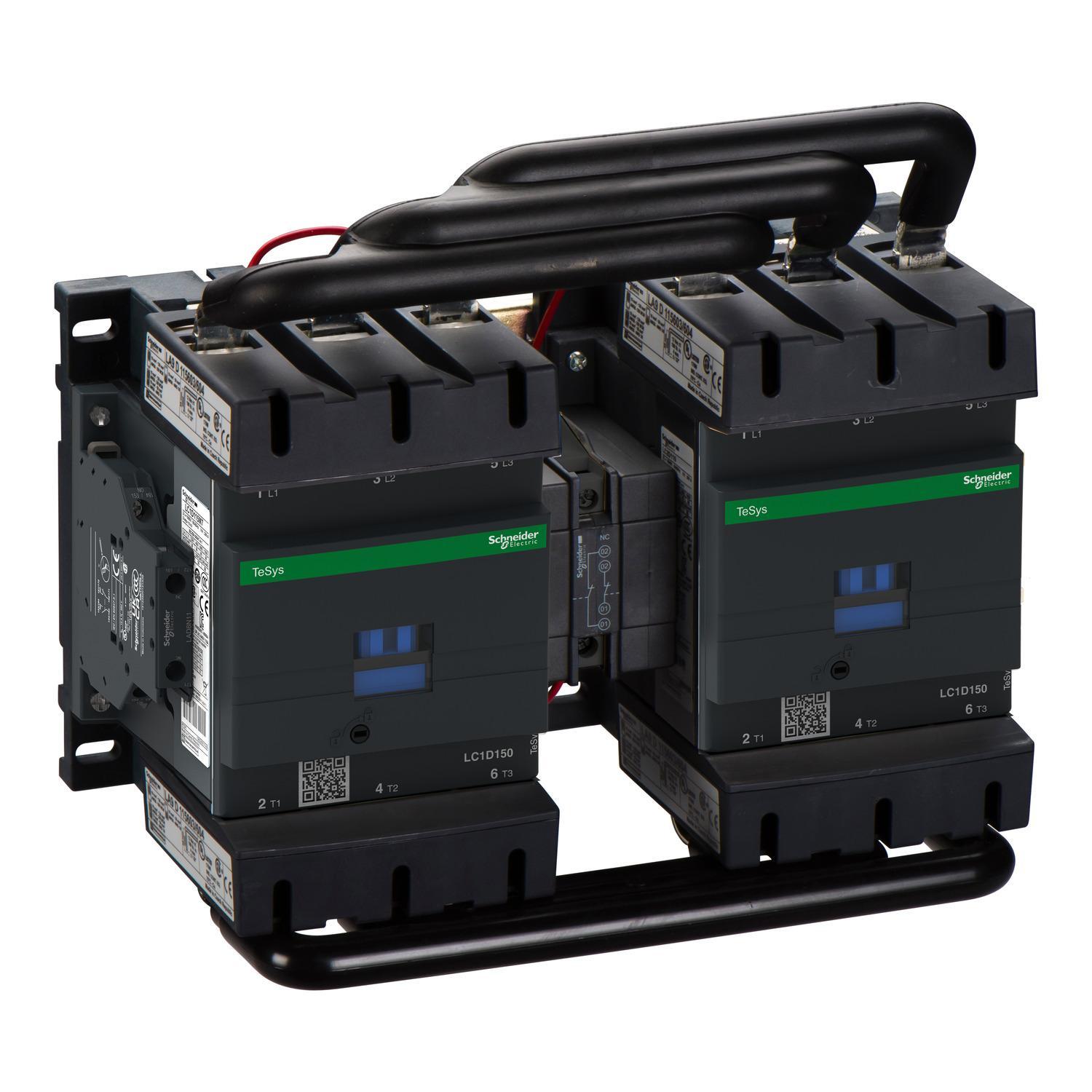

Schneider Electric Square D™ TeSys™ D LC2D150B7 Reversing Contactor With Electrical, Mechanical and Safety Cover, 24 V AC V Coil, 200 A, 3NO Contact, 3 Poles
Sku #38911050834
MFG #LC2D150B7
Attributes
| Type: | Reversing |
| Coil Voltage: | 24 V AC |
| Coil Power Rating: | 18 VA |
| Series: | LC2D |
| Maximum Load Current: | 200 A |
| Number of Poles: | 3 |
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications
- New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil
- TeSys™ D green contactor simplify your maintenance services with 90% less references needed
- TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger-safe terminals with both North American and International terminal markings
- TeSys™ D contactors can be panel mounted with screws or DIN rail mounted
- Control circuit flexibility
- https://www.youtube.com/embed/COFeQr6wcKc
- For motor control and resistive load
- IEC 60695-2-1|IEC 60947-4-1|UL 94|EAC|BV|CCC|CSA C22.2 14|DNV|EAC Standard|EN 60947-4-1|EN 60947-5-1|GL|IEC 60529|IEC 60695-2-1|IEC 60947-5-1|RINA|UL 508|UL 94|Green Premium™|REACH Compliant|RoHS Compliant|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
