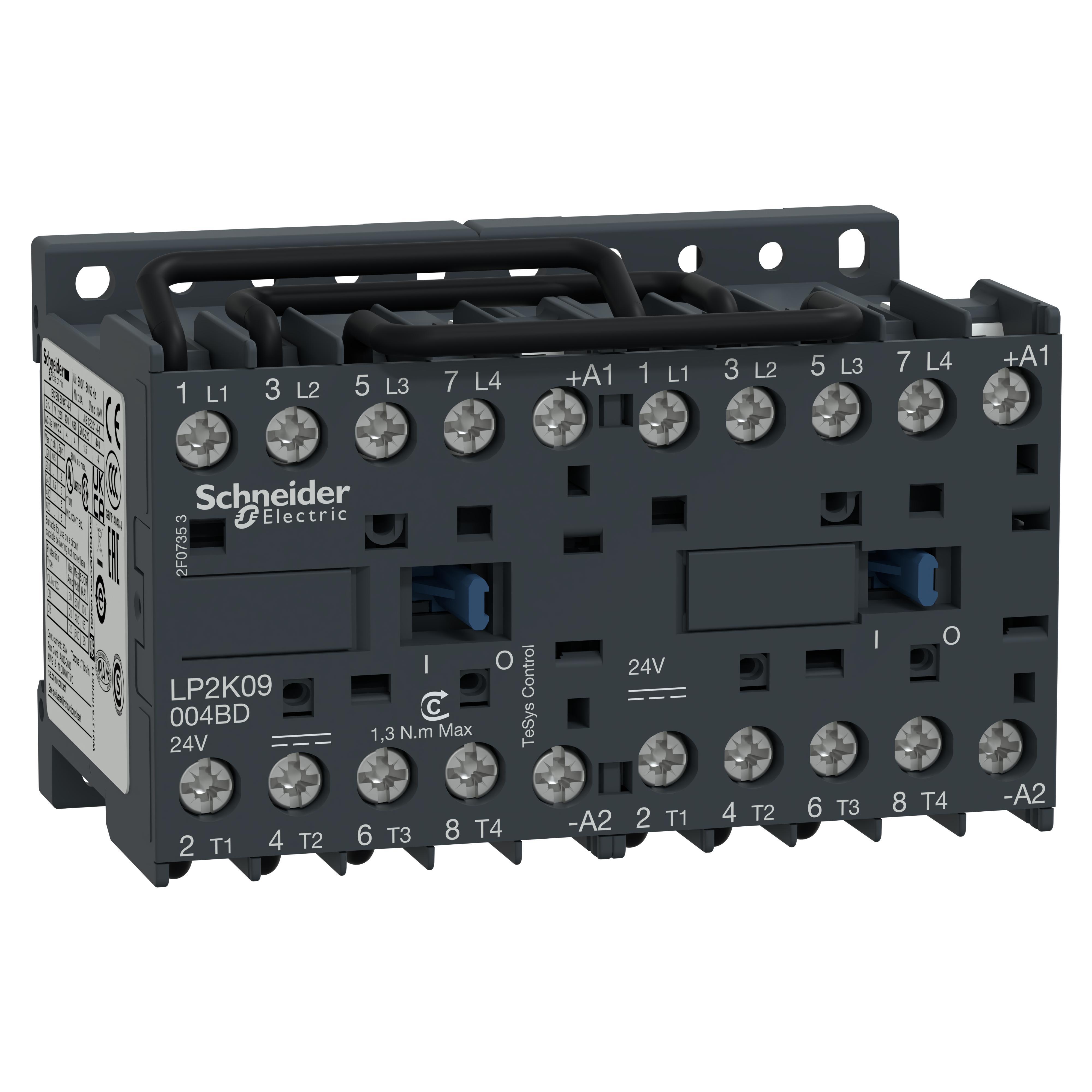

Schneider Electric LP2K09004BD LP2K Series Changeover Contactor, 24 V DC v coil, 16 to 20 A, 4NO contact, 4 poles
Sku #38911049780
MFG #LP2K09004BD
Attributes
| Type: | Changeover Contactor |
| Coil Voltage: | 24 V DC |
| Number of Poles: | 4 |
| Series: | LP2K Series |
| Maximum Load Current: | 16 to 20 A |
| Frequency Rating: | 50/60 Hz |
- TeSys K contactors and overload relays are ideal for general duty applications where small size and reliability are key concerns
- A The special armature structure design allows all devices and all operating coils, either AC or DC, to have the same physical size and panel footprint for convenience
- Devices are available with low consumption DC operating coils for direct connection to PLC circuits
- Resistive load contactor application
- Preassembled with reversing power busbar device presentation
- 8 kV uimp rated impulse withstand voltage
- III overvoltage category
- 90 A 122 deg F (50 deg C) - 1 s power circuit85 A 122 deg F (50 deg C) - 5 s power circuit80 A 122 deg F (50 deg C) - 10 s power circuit60 A 122 deg F (50 deg C) - 30 s power circuit45 A 122 deg F (50 deg C) - 1 min power circuit40 A 122 deg F (50 deg C) - 3 min power circuit20 A 122 deg F (50 deg C) - >= 15 min power circuit icw rated short-time withstand current
- 3 mOhm - Ith 20 A 50 Hz power circuit average impedance
- Power circuit 600 V UL 508Power circuit 690 V IEC 60947-4-1Power circuit 600 V CSA C22.2 No 14 ui rated insulation voltage
- Mechanical interlocking type
- 30 to 40 ms coil energisation and NO closing10 ms coil de-energisation and NO opening operating time
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 safety reliability level
- 5 Mcycles mechanical durability
- TC IEC 60068TC DIN 50016 protective treatment
- 6561.68 ft (2000 m) without derating operating altitude
- V1 conforming to UL 94Requirement 2 conforming to NF F 16-101Requirement 2 conforming to NF F 16-102 flame retardance
- Shocks contactor closed, on Z axis15 Gn for 11 ms IEC 60068-2-27Shocks contactor opened, on Z axis10 Gn for 11 ms IEC 60068-2-27Vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6Vibrations contactor opened2 Gn, 5 to 300 Hz IEC 60068-2-6Shocks contactor opened, on X axis: 10 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor opened, on Y axis: 6 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on X axis: 15 Gn for 11 ms conforming to IEC 60068-2-27Shocks contactor closed, on Y axis: 10 Gn for 11 ms conforming to IEC 60068-2-27 mechanical robustness
- With toxic heavy metal free
- IEC 60947BS 5424NF C 63-110VDE 0660|UL Listed|CSA|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
