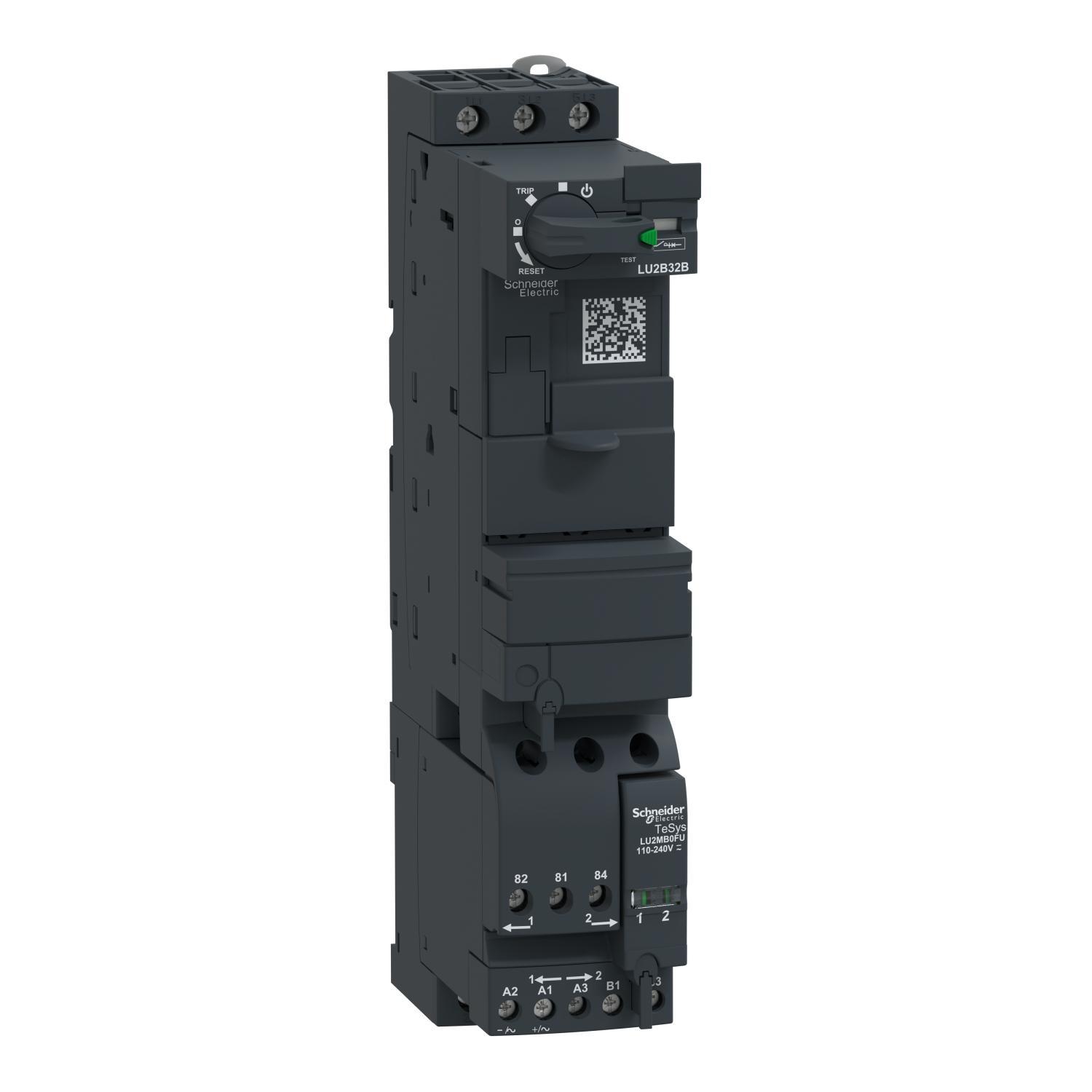

Schneider Electric TeSys™ LU2B32B Reversing Power Base, 3 Poles, For Use With TeSys™ Isolated Motor
Sku #38911036298
MFG #LU2B32B
Attributes
| Type: | Reversing |
| Number of Poles: | 3 |
| Specifications: | IP20, Screw Clamp Terminal, 32 A, 24 V AC, 1NO-1NC, 230/440/500/690 V AC, 40 to 60 Hz, -25 to 60 deg C Operating, 1500000 Operating Cycles, 2 hp at 115 V AC/5 hp at 230 V AC/10 hp at 200/230V AC/20 hp at 460 V AC/25 hp at 575/600V AC |
| Series: | LU2B |
| Suitable For Use With: | TeSys™ Isolated Motor |
| Dimensions: | 8.82 in H x 1.77 in W x 4.96 in D |
- DIN-rail mounting and screw fixing
- Type of control to be achieved - Basic or Advanced
- Modular, plug and play structure helps you to perform quick maintenance
- Direct access to detailed information for every motor starter of your installation
- Advanced motor management system
- RoHS Compliant|ABS Certified|ASEFA Certified|ATEX Compliant|BV Certified|CCC Certified|CSA C22.2 No. 14 Type E|DNV Certified|GL Certified|GoST-R Certified|Lloyd's Register Certified|EN 60947-6-2|IEC 60947-6-2|UL 508 Type E|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
