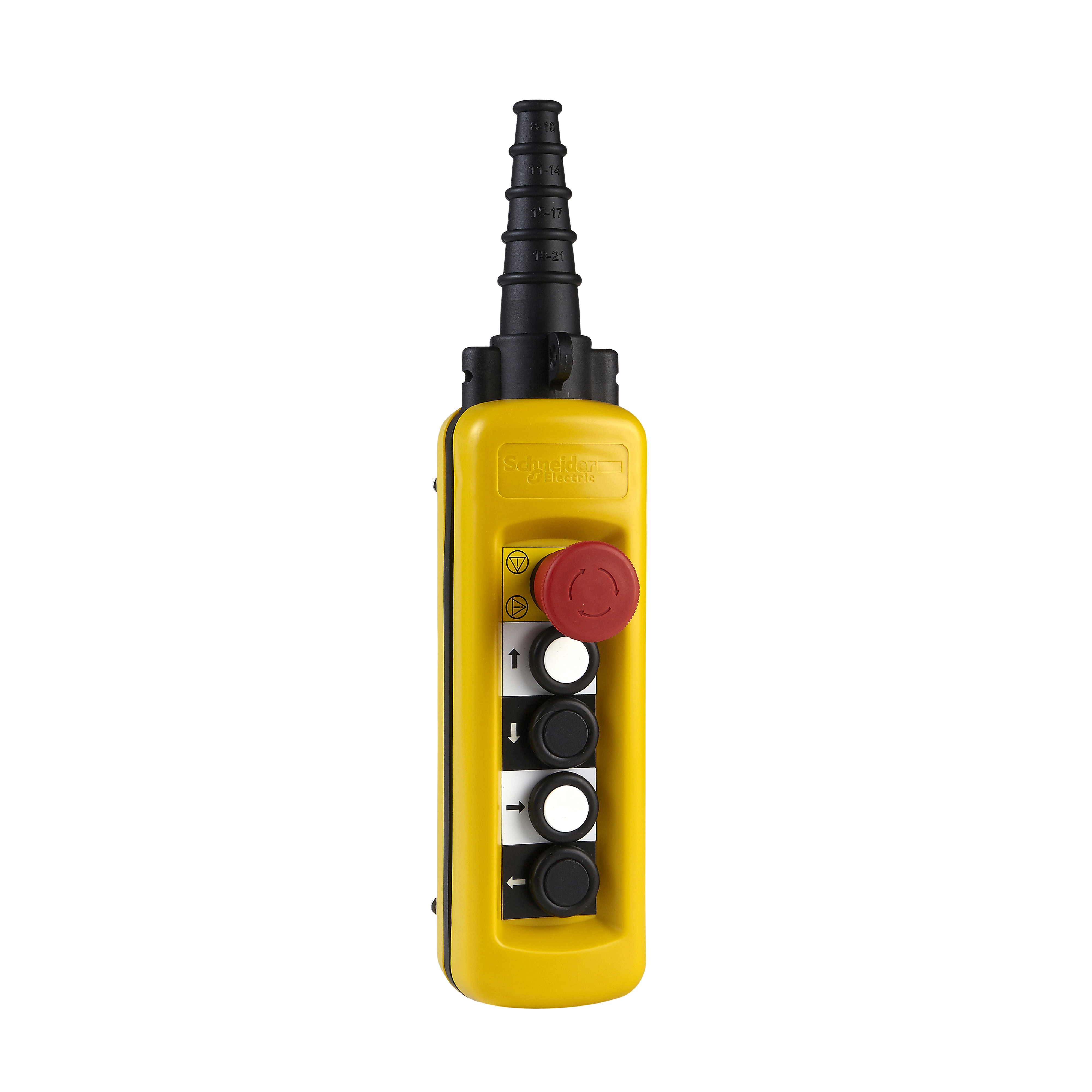

Schneider Electric XACA4812 XACA Pendant control station, Slow Break Contact
Sku #38911032575
MFG #XACA4812
Attributes
| Type: | Pendant control station |
| Contact Type: | Slow Break |
| Enclosure Type: | IP65 |
| Series: | XACA |
| Terminal Type: | Screw Clamp |
| Temperature Rating: | -13 to 158 deg F |
- 1 or 2 speed up, down, right, and left movements function with emergency stop option available
- XACA- / XACB- / XACD- / XACM- perdant types
- Single and two-speed versions with 2, 4, 6, 8, 12 number of hole versions
- Momentary or maintained contacts with or without mechanical interlocks
- Yellow-colored pendants only
- Beside pre-built versions, all other orders are custom
- XACA available with pistol grip
- Double insulated control station type
- Control of single speed hoist motor control station application
- 4 push-buttons + 1 emergency stop control station composition
- First push-button 1 NC + 1 NO raise, slowSecond push-button 1 NC + 1 NO lower, slowThird push-button 1 NC + 1 NO left, slowFourth push-button 1 NC + 1 NO right, slowEmergency stop push-button dia 40 mm 1 NC trigger action blank control button type
- With mechanical interlocking between pairs mechanical interlocking
- Yellow control station colour
- TH protective treatment
- Class II IEC 61140 overvoltage category
- 1000000 cycles mechanical durability
- Rubber sleeve with stepped entry 0.31 to 12 in (8 to 26 mm) cable entry
- Emergency stop contact 400 V 3)IEC 60947-1 600 V 3) ui rated insulation voltage
- 6 kV IEC 60947-1 uimp rated impulse withstand voltage
- CCC;GOST;IK08 conforming to IEC 62262;UL 508;EN/ISO 13850: 2006;IEC 60947-5-5;IEC 60947-5-1;IEC 60204-32;CSA C22.2 No 14;100 gn IEC 60068-2-27;15 gn 10-500 Hz)IEC 60068-2-6;IP65 conforming to IEC 60529
- Control circuit,Control of single speed hoist motor
