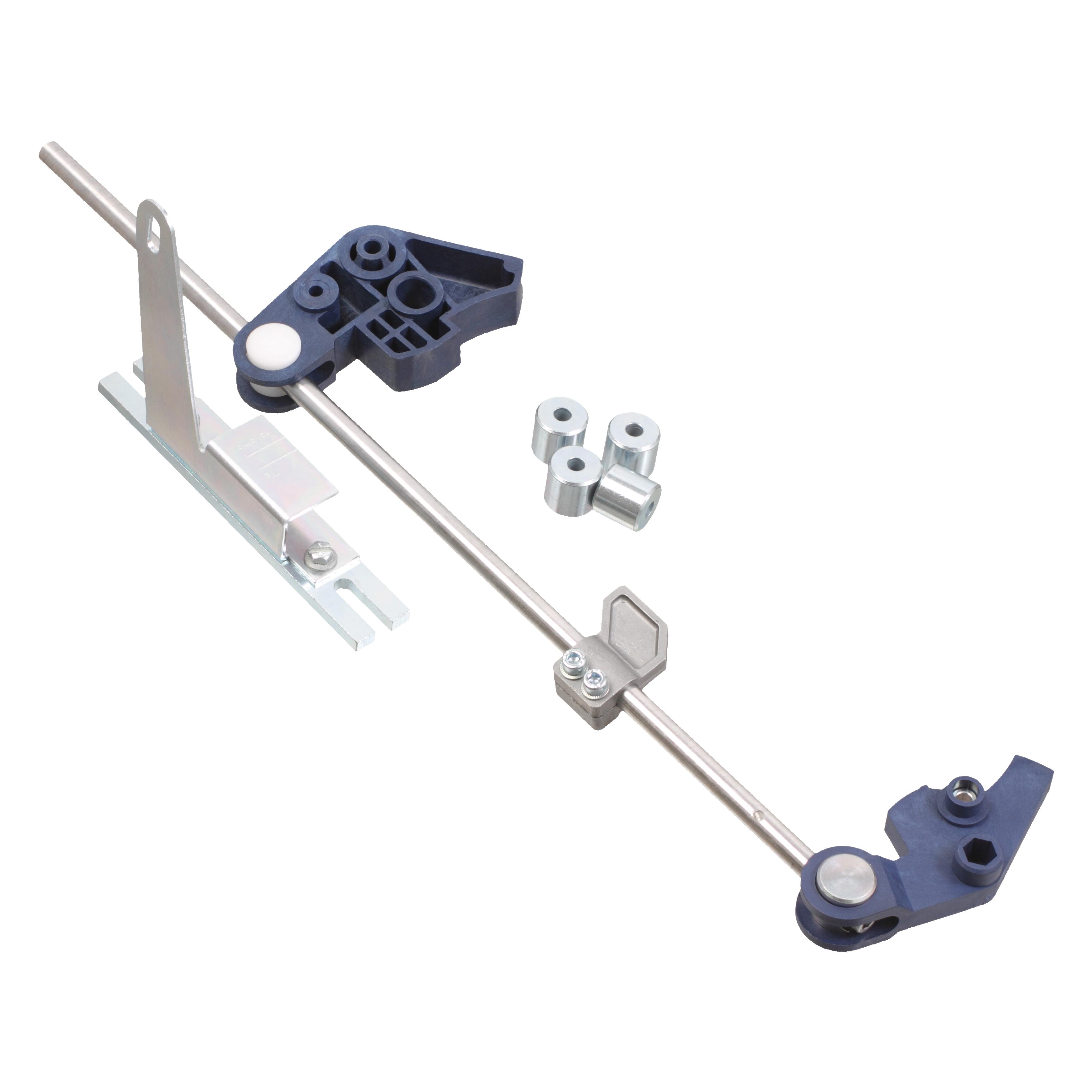

Schneider Electric LA9FH4G LA9F Mechanical Interlock, 115 to 1000 A AC-3 applications, 200 to 2600 A for AC-1 applications
Sku #38911029645
MFG #LA9FH4G
Attributes
| Series: | LA9F |
| Mounting Type: | Vertical/Rail |
| Amperage Rating: | 115 to 1000 A AC-3 applications/200 to 2600 A for AC-1 applications |
| Country of Origin: | FR |
- TeSys F contactors are available for the USA market for inductive motor applications from 115 up to 800 full-load amps and resistive loads up to 2100 A
- They offer motor control and overload protection for motors rated up to 800 HP at 480 Vac or 900 HP at 600 Vac
- 2 pole, 3 pole and 4 pole Contactors and Magnetic Latching Contactors
- AC or DC operating coils
- Both North American and international terminal markings
- Replacement parts available
- Arc Chambers
- Easily installed accessories
- Auxiliary contact blocks with serrated wiping action
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Solid State Overload Relays
- Class 10 or class 20 overload relays are available from 30 to 630 Aeres
- They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection
- They also include the following features Isolated N.C. trip contact, N.O. alarm contact
- Manual reset button
- Rotary dial for adjustable current settings with tamper resistant window
- Momentary stop button and trip indicator
- RoHS Compliant|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
- For CR1F, LC1F
