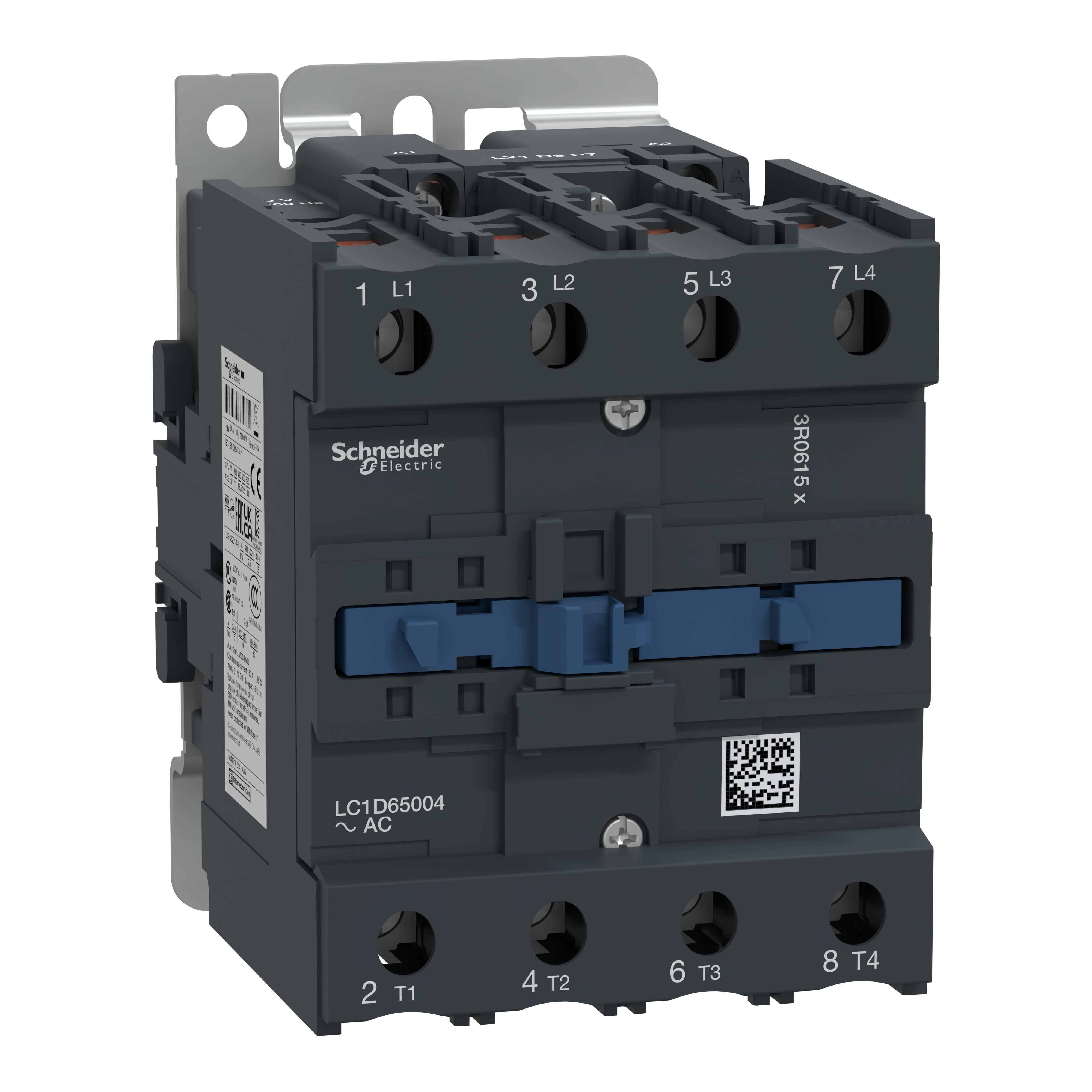

Schneider Electric LC1D65004G7 LC1D Non-Reversing Standard Contactor, 120/690 V AC V Coil, 80 A, 4NO Contact, 4 Poles
Sku #38911026548
MFG #LC1D65004G7
Attributes
| Type: | Non-Reversing Standard |
| Coil Voltage: | 120/690 V AC |
| Coil Power Rating: | 13, 15 |
| Series: | LC1D |
| Maximum Load Current: | 80 A |
| Number of Poles: | 4 |
- Designed to control and provide overload protection to motors rated up to 100 hp at 480 VAC or 125 hp at 600 VAC, TeSys™ D meets your needs for a majority of motor starter applications
- New TeSys™ D green increase TeSys™ D range with a new electronic coil with up to 80% less consumption than TeSys™ D standard AC or DC coil
- TeSys™ D green contactor associated with TeSys™ LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
- High fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR
- All contactors include built-in auxiliary contacts
- All screw connections have IP20 finger safe terminals with both North American and international terminal markings
- Designed for perfect integration in control systems
- Can be used to create motor starters for any type of application
- 120 VAC at 50/60 Hz, power circuit 690 VAC at 25 to 400 Hz
- Without built-in bidirectional peak limiting diode suppressor
- TeSys D contactors are available in 11 contactor ratings for the USA market for inductive motor applications from 9 up to 150 full-load amps and resistive loads up to 200 amps
- Eliminates the time-consuming process of selecting tested combinations through web sites and spreadsheets
- Simple to select the right product
- 3-pole and 4-pole contactor versions available
- Easily installed accessories
- RoHS Compliant|WEEE Compliant|REACH Compliant|Green Premium|CSA C22.2 No. 14|EN 60947-4-1|EN 60947-5-1|IEC 60947-4-1|IEC 60947-5-1|UL 508|GoST-R Certified|RINA Certified|BV Certified|CCC Certified|DNV Certified|GL Certified|Lloyd's Register Certified|ECCN: EAR99|PROP65: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
- Industries, Infrastructure, Building, Resistive Load and Motor Control Applications
