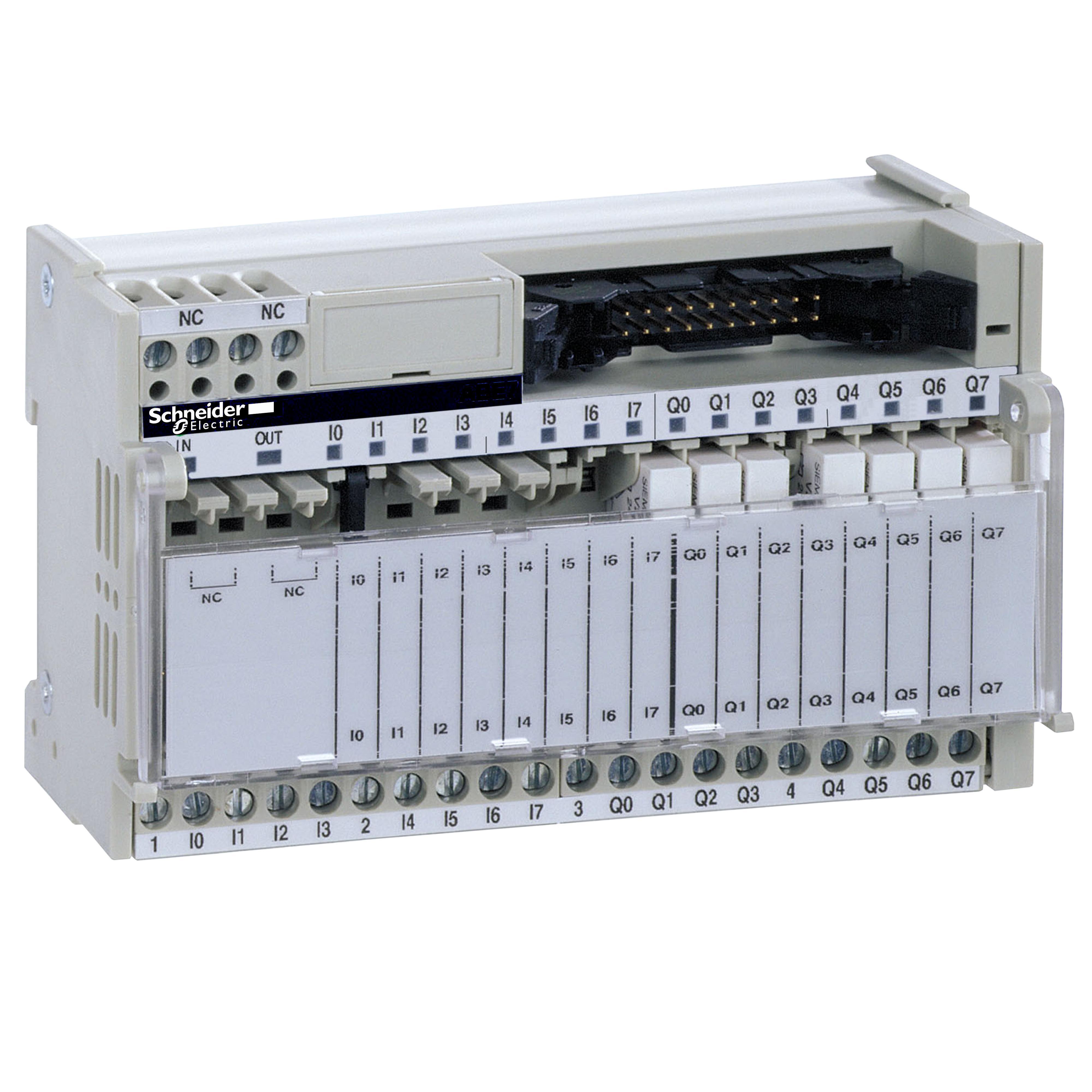

Schneider Electric ABE7R16M111 Sub-Base With Plug-In Electromechanical Relay, 1NO 1 Form A contact
Sku #38911025106
MFG #ABE7R16M111
Attributes
| Type: | Sub-Base With Plug-In Electromechanical Relay |
| Mounting Type: | DIN Rail |
| Enclosure Type: | IP20/IP2X |
| Contact Form: | 1NO 1 Form A |
| Terminal Type: | Screw |
| Temperature Rating: | 23 to 140 deg F |
- ABR7S11
- Plug & play solution
- 8, 12,16 channel modularity
- 1, 2, 3 wire connection
- LED state display
- Voltage and power adaptation
- Common polarities distribution
- Solid state and electromechanical technology
- Specialised sub-bases for analog signal connection
- Output sub-base sub-base type
- Common distribution group of 4 + 2 inputs common terminals polarity distribution
- 1 A internal fuse, 5 x 20 mm, fast blow PLC end) short-circuit protection
- 1 A maximum supply current
- 0.3 V voltage drop on power supply fuse
- 5 A screw type terminals maximum current per output common
- 2000 V terminals/mounting rails300 V coil circuit/contact circuits IEC 60947-1 ui rated insulation voltage
- 12 A maximum current per module
- 2.5 kV uimp rated impulse withstand voltage
- II IEC 60664-1 installation category
- 1382 deg F (750 deg C) 30 s IEC 60695-2-11 resistance to incandescent wire
- UL|Certified|DNV|BV|CSA|GL|LROS (Lloyds register of shipping)|EAC|PROP65: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
