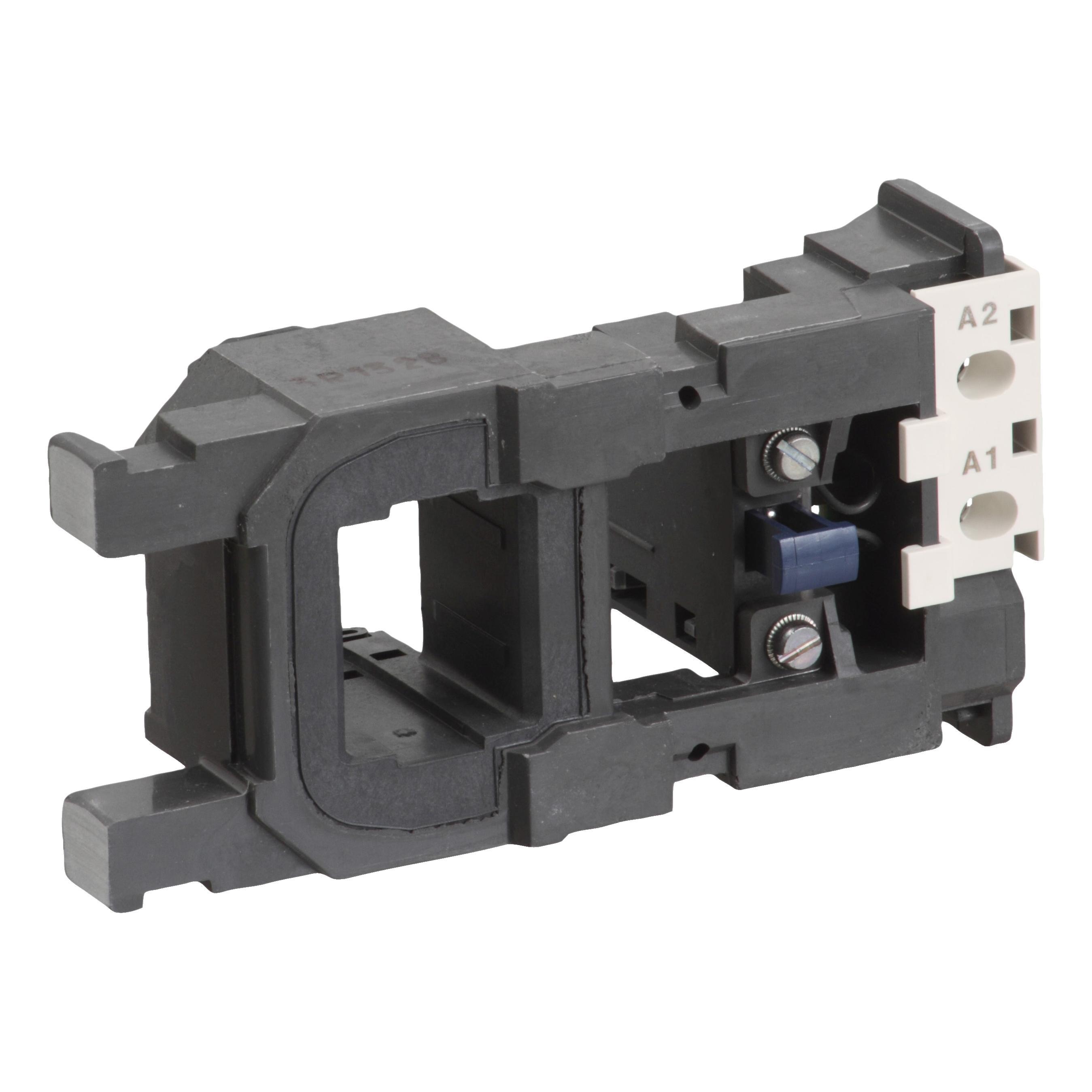

Schneider Electric LX4FF060 LX4FF Series Contactor Coil, 72 V DC
Sku #38911024707
MFG #LX4FF060
Attributes
| Type: | Contactor Coil |
| Voltage Rating: | 72 V DC |
| Series: | LX4FF Series |
| Country of Origin: | CZ |
- The TeSys F contactors and overload relays offer proven performance for resistive loads or large motor starting applications such as fans, crushers, pumps, compressors and overhead cranes
- Front mount dust tight auxiliary contact blocks
- Pneumatic time delay blocks
- Solid State Overload Relays
- Class 10 or class 20 overload relays are available from 30 to 630 Amperes
- They are ambient compensated and include single phase sensitivity for phase unbalance and phase loss protection
- They also include the following features Isolated N.C. trip contact, N.O. alarm contact
- Manual reset button
- Rotary dial for adjustable current settings with tamper resistant window
- Test trip button
- Momentary stop button and trip indicator
- 75 Ohm inrush 68 deg F (20 deg C)1055 Ohm holding 68 deg F (20 deg C) average resistance
- 66 H inductance of closed circuit
- 30 to 40 ms closing30 to 50 ms opening operating time
- 10 Mcycles mechanical durability
- Without built-in suppressor module coil technology
- With toxic heavy metal free
- LC1F115,LC1F150
- ECCN|REACH|EAR99
