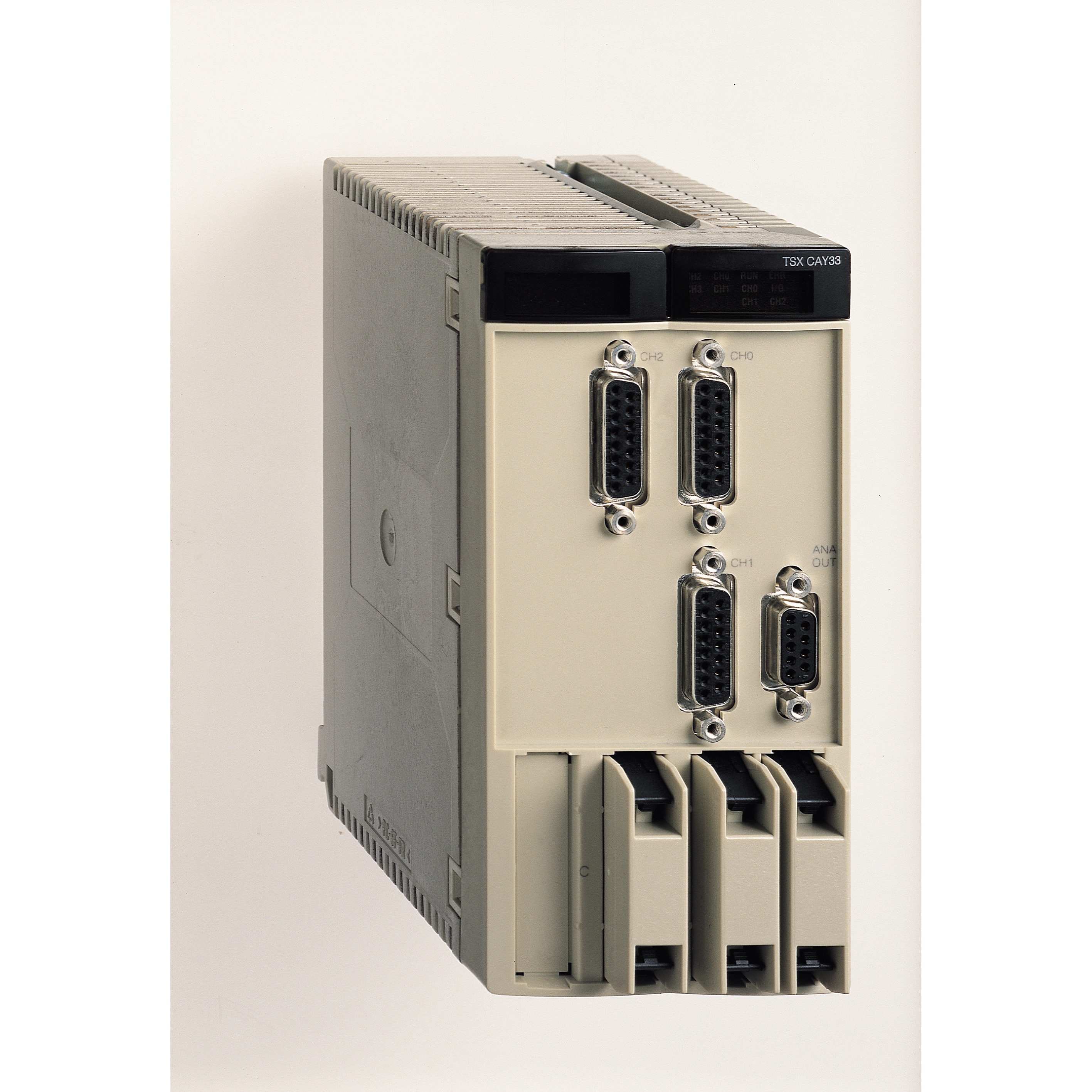

Schneider Electric TSXCAY33 TSX Series, 24 V DC, 3 reflex output static EN/IEC 61131/3 analogue output static/3 servo drive validation output relay outputs
Sku #38911010570
MFG #TSXCAY33
Attributes
| Series: | TSX Series |
| Power Rating: | 10 to 17 W |
| Temperature Rating: | 32 to 140 deg F |
| Voltage Rating: | 24 V DC |
| Number of Outputs: | 3 reflex output static EN/IEC 61131/3 analogue output static/3 servo drive validation output relay |
| Country of Origin: | FR |
- PROP65: This product can expose you to chemicals including: Lead and lead compounds which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- For servomotors - 8 ms
- IEC languages as standard: LD, ST, FBD, SFC, IL. High performance CPUs with 37 ns per instruction and up to 7 Mb of programme
- High-level multitasking system
- A compact system (very high density modules) particularly at ease in extended architectures (distribution of 16 racks in real time without repeater)
- An extensive catalogue of application-specific modules (safety, reflex processing, counter, position control, motion, weighing, data storage)
- New High End processors
- All Ethernet TCP/IP Transparent Ready services: IO scanning, Global Data, Web server, e-mail messaging, direct access to databases, TCP Open, Network Time Protocol, etc
- Numerous built-in ports: USB port, Ethernet TCP/IP port with Web server, CANopen or FIP master port, Modbus serial port
- The widest connectivity offer on the market:AS-Interface, Modbus Plus, INTERBUS or PROFIBUS DP
- Proportional to overshoot compensation and gain switching 4 ms servo loop type
- Presence of voltage/sensor feedback counter inputConsistency of commandsEncoder coupling, servo drive present, emergency stopProper execution of movementSensor power supplyValidity of parameters checks
- Trapezoidal or parabolic speed profile path
- <= 1000 position units per point>= 0.5 position units per point resolution
- 256 to 32000000 P length of axis
- >= 54000 points/mn<= 270000 points/mn acquisition speed
- 8 ms to 10 s acceleration time
- Limited axis2/3 axis linear interpolation type of axis
- 3 axes i/o modularity
- 200 kHz SSI absolute encoder clock frequency
- 500 kHz incremental encoder frequency x1
