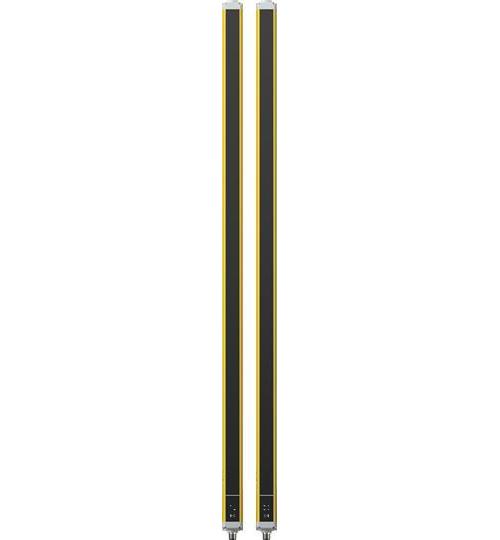

ABB 2TLA022302R0400 Orion1 Type 4 Base Hand Detection Safety Light Curtain, 32.3 mm W x 36.9 mm D, 750 mm H Protected, 0.2 to 19 m Operating, 40 Beams, 833.2 mm OAH
Sku #35002448154
MFG #2TLA022302R0400
Attributes
| Type: | Type 4 Base Hand Detection |
| Size: | 32.3 mm W x 36.9 mm D |
| Operating Range: | 0.2 to 19 m |
| Series: | Orion1 |
| Protected Height: | 750 mm |
| Number of Beams: | 40 |
- For manually serviced machines
- cULus Listed|TDV Certified|Machinery 2006/42/EC|EMC 2004/108/EC|EN ISO 13849-1:2008|EN 62061:2005+A1:2013|EN 61496-1:2013|EN 61508-1:2010
- Orion1 base comes with a minimum of advanced functionalities to save cost
- M12 connectors speed up cabling
- A 30 mm resolution is intended for hand detection and area protection and is a good compromise between cost and accessibility to the machine
- A 30 mm resolution enables a sensing range of 19 m
- A local reset button is connected directly to the light guard instead of to the safety control module in the electrical cabinet
- This saves safety relays/PLC inputs and minimizes cabling to the electrical cabinet
- Clever accessories makes the connection easier
- External device monitoring is a feature allowing the light guard to supervise the actuators in simpler applications, eliminating the need for a safety relay or programmable safety controller
- In this way there is no need for a cable between the reset button and the electrical cabinet or for an extra control module
- Each light curtain can monitor the actuators without any extra control module (EDM function)
- Since the alignment level is displayed, the alignment can be improved before the occurrence of an unwanted stop
- Extensive error indication reduces troubleshooting time
- Protective tubes and lens shields protect the devices in harsh environments
- Alignment help and a wide angle within the limits of a type 4 device facilitate alignment
- Rotation brackets also simplify alignment
