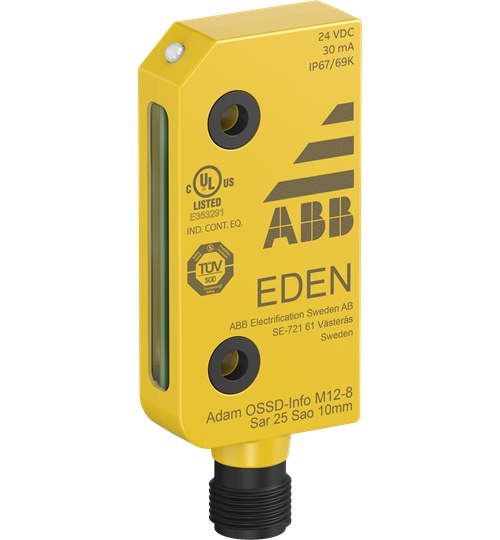

ABB Jokab Safety® 2TLA020051R5700 Eden 8-Pole Fixed Safety Sensor Unit With OSSD Signal, Information Output, NC, OSSD Signal Output, 24 V DC
Sku #35002448036
MFG #2TLA020051R5700
Attributes
| Type: | 8-Pole Fixed |
| Sensing Method: | NC |
| Output Type: | OSSD Signal |
| Series: | Eden |
| Sensing Distance: | 15 mm |
| Voltage Rating: | 24 V DC |
- Continuous operation
- Easier troubleshooting: Extensive LED indication and status information reduce downtime
- Non-contact sensing means no mechanical wear and no actuator that must fit in a specific opening, moreover, the large sensing tolerance means better tolerance to vibrations and fewer unwanted process stops
- Local reset function - the integrated reset function reduces the number of cables and PLC inputs
- Series connection with PL e, local reset and DYNlink signal allow to considerably reduce the number of components needed to reach PL e
- Large mounting tolerance 360 deg mounting possibility with generous tolerances facilitates mounting
- Fast connection: M12 connectors, local reset and accessories speed up installation
- Easy to install
- Affordable range
- (4) DA 1B Distance Plates and (4) DA 2B Distance Rings
- Position Control, Doors and Hatches Applications
- CE Certified|UL Listed|TUV Approved|cULus Listed|EN 62061:2005/A2:2015|EN 60204-1:2006+A1:2009|EN 60664-1:2007|EN 61000-6-2:2005|EN 61000-6-4:2007|EN 60947-5-3:2013|EN 61508:2010
