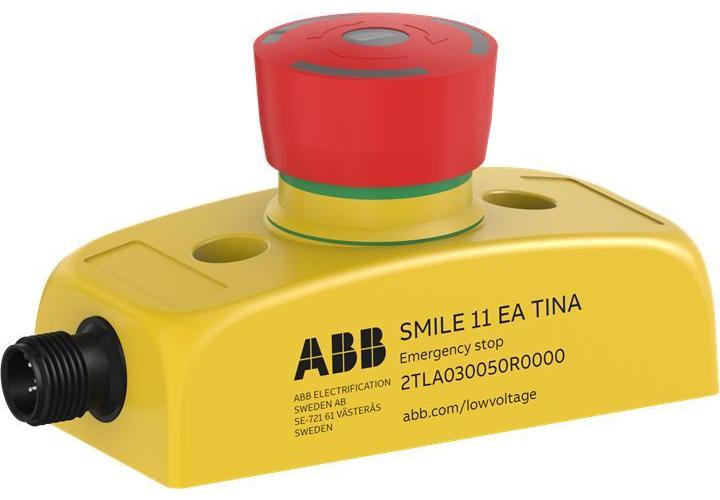

ABB 2TLA030050R0000 2TLA Safety Control Emergency Stop Button, 84 mm L x 40 mm W x 52 mm H, 1NO Contact, Red/Yellow
Sku #35002443214
MFG #2TLA030050R0000
Attributes
| Type: | Safety Control |
| Size: | 84 mm L x 40 mm W x 52 mm H |
| Contact Mode: | On/Off |
| Series: | 2TLA |
| Contact Configuration: | 1NO |
| Contact Rating: | 24 V DC |
- Robust models and models in stainless steel for use in demanding environments
- < 70 us time delay
- Several models to choose between depending on position, installation and function
- Up to e performance level
- Polyamide PA66, macromelt, polybutylenterephthalate PBT, polypropene PP, UL94 V-0 housing
- Tina adaptation unit included for dynamic circuit, status LED in button and an M12 5-pin male connector
- Quick and easy installation of models with features such as centered mounting holes, removable terminal blocks and M12 connectors
- 50m/s2 at 10 Hz, 10 cycles, 3-axis vibration resistance
- >50000 operations mechanical life
- 150 m/s2, pulse width 11 ms, 3-axis impact resistance
- Models with a compact and appealing housing saves space and makes it easy to place
- Models with integrated LED diagnostics reduce downtime when troubleshooting
- Tina models save cable length and installation time with serial connection
- Emergency stop in smile enclosure
- On the top of the smile Tina E-stop unit, an LED indicates the actual status according to the dynamic system
- Smile Tina from ABB is very easy to install, especially on aluminum extrusions
- Smile Tina from ABB is intended for use in safety circuits in accordance with EN 60204-1
- 22 +/- 4N, 4 mm to latch actuator
- For Smile enclosure and Tina adaptation unit
- EN ISO 12100-2|EN 60204-1|EN 954-1|EN ISO 13849-1|EN 62061|IEC 60947-5-1|TUV|CE Certified|UL 94 V-0 Flammability Rating
