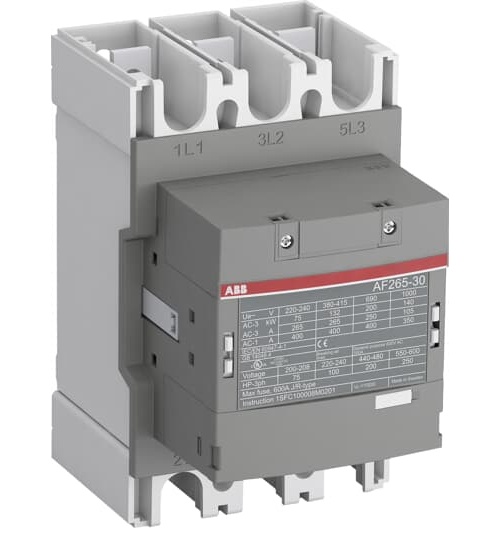

ABB AF265N5R-30-22-13 AF265N Contactor, 100 to 250 VAC/VDC V Coil
Sku #32050055950
MFG #AF265N5R-30-22-13
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 100 hp, 200 hp |
| Series: | AF265N |
| Maximum Load Current: | 270 A |
| Number of Poles: | 3 |
- Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 100 hp at 230 VAC 3-ph, 200 hp at 460/575 VAC 3-ph
- For directionally controlling 3-phase motor circuits up to 575 VAC
