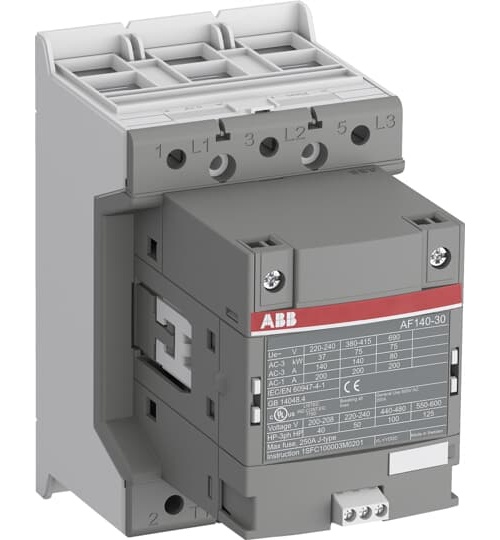

ABB AF140N4R-30-22-11 AF140N4R Contactor, 24 to 60 V AC/DC V Coil, 3 Poles
Sku #32050055944
MFG #AF140N4R-30-22-11
Attributes
| Type: | AC/DC Operated Reversing |
| Coil Voltage: | 24 to 60 V AC/DC |
| Coil Power Rating: | 40 hp, 50 hp, 60 hp |
| Series: | AF140N4R |
| Maximum Load Current: | 135 A |
| Number of Poles: | 3 |
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 40 hp at 200 VAC, 50 hp at 230 VAC, 60 hp at 460/575 VAC
- For directionally controlling 3-phase motor circuits up to 575 VAC
- UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1A
