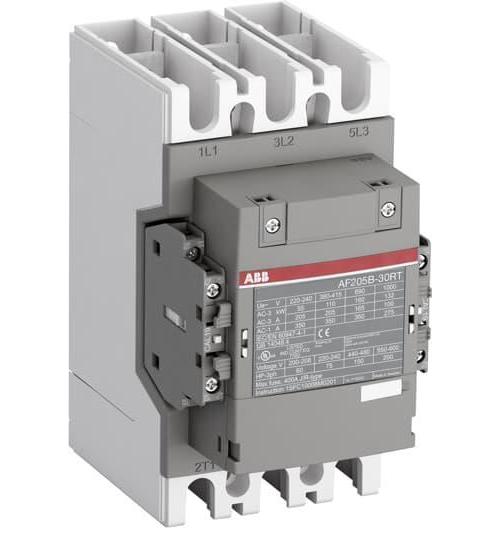

ABB AF305B-30-22RT-11 A-Line AC/DC Operated IEC Contactor With Ring Tongue Ferrule, 24 to 60 V AC, 20 to 60 V DC V Coil, 192 A, 3NO Contact, 3 Poles
Sku #32050051032
MFG #AF205B-30-22RT-11
Attributes
| Type: | A-Line AC/DC Operated |
| Maximum Load Current: | 192 A |
| Number of Poles: | 3 |
| Coil Voltage: | 24 to 60 V AC, 20 to 60 V DC |
| Coil Power Rating: | 150 hp, 200 hp |
| Frequency Rating: | 50/60 Hz |
- 150 hp at 440 to 480 VAC, 200 hp at 550 to 600 VAC
- 192 A at 220 to 240 VAC 3-phase UL/CSA
- For railway applications such as motor starting, isolation, by-pass and distribution application up to max 1000 V, operated with wide control voltage range 24 to 60 V, 50 and 60 Hz, 20 to 60 VDC
- IEC 60947-1|EN 60947-1|IEC 947-4-1|IEC/EN 50005|IEC 50012
