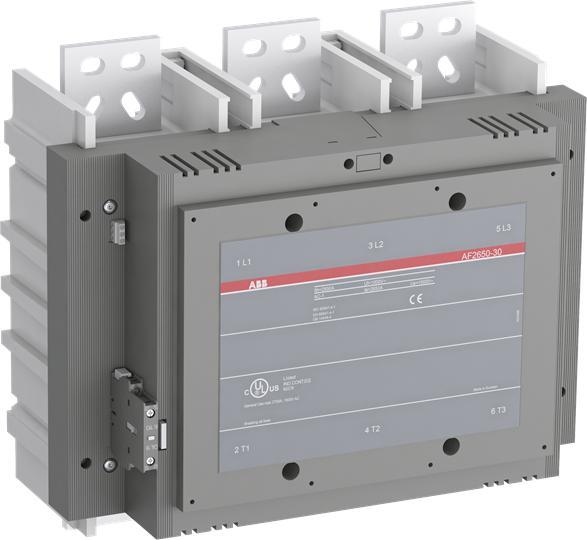

ABB AF2650-30-11-70 AC/DC Operated IEC Contactor, 100 to 250 V AC/DC V Coil, 2700 A, 3NO Contact, 3 Poles
Sku #32050048143
MFG #AF2650-30-11-70
Attributes
| Type: | AC/DC Operated |
| Maximum Load Current: | 2700 A |
| Frequency Rating: | 50/60 Hz |
| Coil Voltage: | 100 to 250 V AC/DC |
| Number of Poles: | 3 |
| Contact Configuration: | 3NO |
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags
- Built-in surge suppression
- For controlling power circuits up to 1000 VAC or 850 VDC
- IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1|CSA 22.2 60947-1|CSA 60947-4-1
