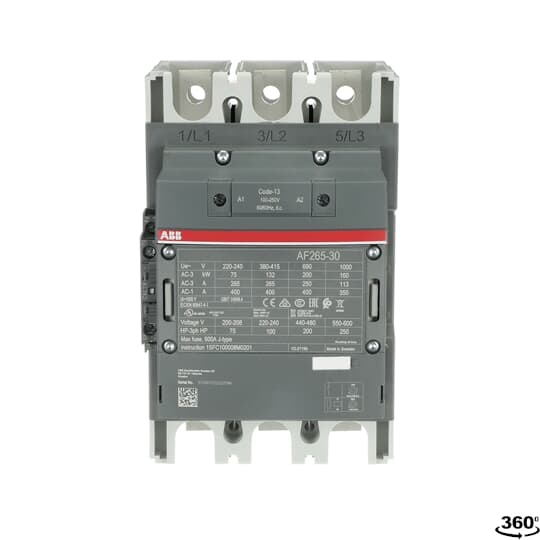

ABB AF265-30-11-13 AF265 3-Phase AC/DC Operated IEC Contactor, 100 to 250 V AC/DC V Coil, 248 A, 3NO Contact, 3 Poles
Sku #32050048118
MFG #AF265-30-11-13
Attributes
| Type: | 3-Phase AC/DC Operated |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 140 kW, 200 hp, 250 hp |
| Series: | AF265 |
| Maximum Load Current: | 248 A |
| Number of Poles: | 3 |
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1)
- 8 kV rated impulse withstand voltage
- 600/1000 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 75 hp at 208 VAC, 200 hp at 440/480 VAC, 250 hp 550/600 VAC, 100 hp at 220/240 VAC, 75 hp at 200 VAC 3-phase power rating
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- These contactors are of the block type design with 3 main poles
- 248 A at 220 to 240 VAC 3-phase UL/CSA
- For controlling 3-phase motors and power circuits up to 1000VAC, motor starting, isolation, by-pass and distribution application up to maximum 690 V
- Surge Supression
- RoHS Compliant|CSA 60947-4-1A|RINA Approved|UL 508|CSA C22.2 No. 14|IEC/EN 60947-4-1|RINA Certified
