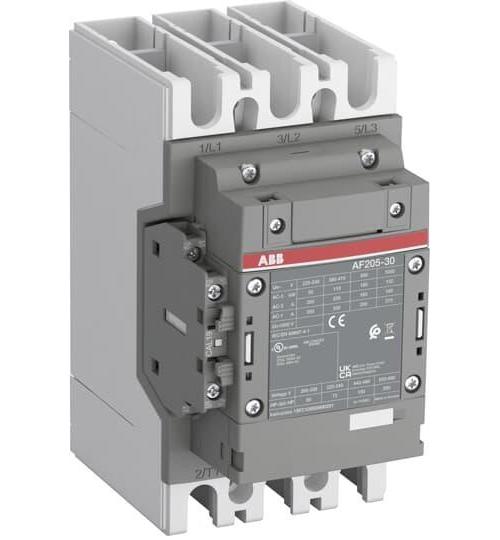

ABB AF205-30-11-14 AF Series Non-Reversing Line Contactor, 250 to 500 V AC/DC V Coil, 300 A, 3NO Contact, 3 Poles
Sku #32050048057
MFG #AF205-30-11-14
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 250 to 500 V AC/DC |
| Coil Power Rating: | 60 hp, 75 hp, 150 hp, 200 hp |
| Series: | AF Series |
| Maximum Load Current: | 300 A |
| Number of Poles: | 3 |
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 60 hp at 200 VAC 3 ph, 60 hp at 208 VAC 3 ph, 75 hp at 220 to 240 VAC 3 ph, 150 hp at 440 to 480 VAC 3 ph, 200 hp at 550 to 600 VAC 3 ph
- 132 kW at 1000 V, 55 kW at 220/230/240 V, 110 kW at 380/400 V, 110 kW at 415 V, 132 kW at 440 V, 110 kW at 500 V, 160 kW at 690 V
- For various applications such as motor starting, isolation, by-pass and distribution application up to max 1000 V
- BAA Compliant|CB Certified|CE Certified|RINA Certified|RoHS Compliant
