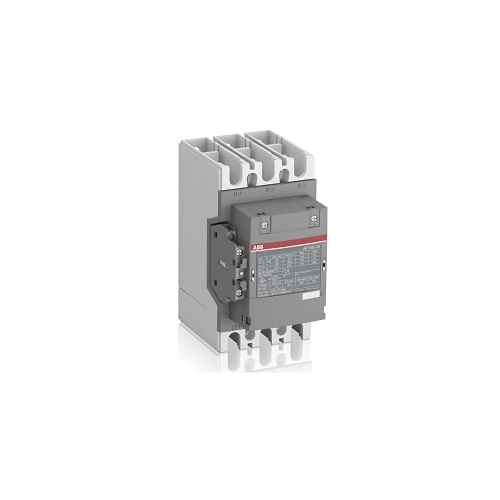

ABB AF190-30-11-13 AF Series 3-Phase A-Line Non-Reversing IEC Contactor, 100 to 250 V AC/DC V Coil, 230/250 A, 3NO Contact, 3 Poles
Sku #32050048043
MFG #AF190-30-11-13
Attributes
| Type: | 3-Phase A-Line Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 125 hp |
| Series: | AF Series |
| Maximum Load Current: | 230/250 A |
| Number of Poles: | 3 |
- ABS Certified|BV Certified|CB Certified|CCC Certified|CCS Certified|cUL Listed|CE Certified|DNV Certified|DNV GL Certified|EAC Certified|GL Certified|KC Certified|LR Certified|PRS Certified|RINA Certified|RMRS Certified|RoHS Compliant|UL File No E36588
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- For various applications such as motor starting, isolation, bypass and distribution application up to 1000 VAC maximum
