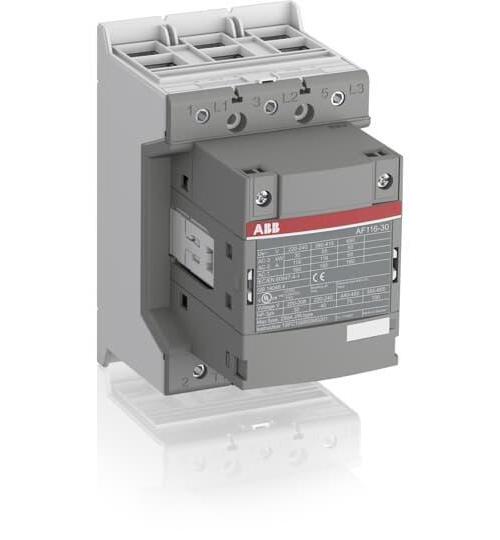

ABB AF116-30-00-13 AF Series Non-Reversing Line Contactor, 100 to 250 V AC/DC V Coil, 160 A, 3NO Contact, 3 Poles
Sku #32050047640
MFG #AF116-30-00-13
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 30 hp, 40 hp, 75 hp, 100 hp |
| Series: | AF Series |
| Maximum Load Current: | 160 A |
| Number of Poles: | 3 |
- Compact, space saving design
- No auxiliary contacts
- For connection with built-in cable clamps
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 160 A at 690 V, 145 A at 690 V, 130 A at 690 V rated operational current AC-1
- 116 A at 220/230/240 V, 116 A at 380/400 V, 116 A at 415 V, 116 A at 440 V, 110 A at 500 V, 65 A at 690 V rated operational current AC-3
- 30 hp at 200 VAC 3 ph, 30 hp at 208 VAC 3 ph, 40 hp at 220 to 240 VAC 3 ph, 75 hp at 440 to 480 VAC 3 ph, 100 hp at 550 to 600 VAC 3 ph
- 30 kW at 220/230/240 V, 55 kW at 380/400 V, 55 kW at 415 V, 75 kW at 440 V, 75 kW at 500 V, 55 kW at 690 V
- BV Certified|CB Certified|CCC Certified|CSA Certified|DNV GL Certified|IEC Certified|LR Certified|RMRS Certified|UL Listed
- For controlling single and 3 ph motors and switching power circuits
