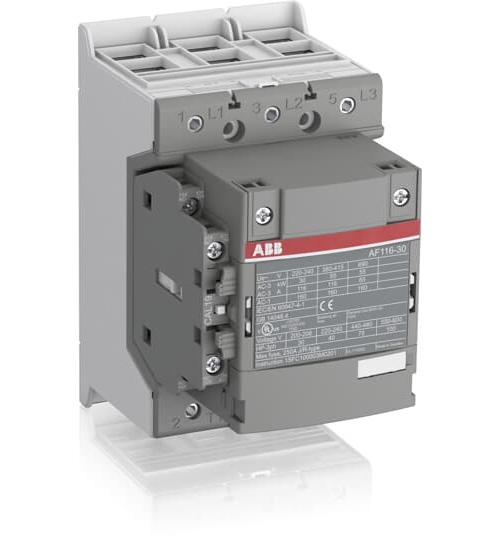

ABB AF116-30-11-13 3-Phase AC/DC Operated IEC Contactor, 100 to 250 V AC/DC V Coil, 160 A, 3NO Contact, 3 Poles
Sku #32050047637
MFG #AF116-30-11-13
Attributes
| Type: | 3-Phase AC/DC Operated |
| Maximum Load Current: | 160 A |
| Number of Poles: | 3 |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 55 kW, 75 hp, 100 hp |
| Frequency Rating: | 50/60 Hz |
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- 55 kW at 3-phase 400 V IEC, 75 hp at 440 to 480 VAC, 100 hp at 550 to 600 VAC
- 160 A at 220 to 240 VAC 3-phase UL/CSA
- RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 60947-1|UL 60947-4-1A|CSA 60947-1|CSA 60947-4-1A|CB Certified|CCC Compliant|CE Certified|RINA Approved
- For controlling 3-phase motors and power circuits up to 690 VAC and 260 VDC, motor starting, isolation, by-pass and distribution application up to maximum 690 V
