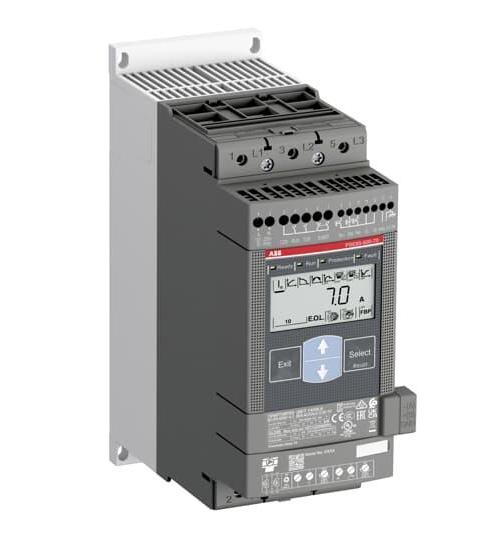

ABB PSE85-600-70 Efficient Range Soft Starter, 100 to 250 VAC V Coil
Sku #32050040066
MFG #PSE85-600-70
Attributes
| Type: | Efficient Range |
| Voltage Rating: | 208 to 600 V AC |
| Frequency Rating: | 50/60 Hz |
| Series: | PSE |
| Amperage Rating: | 85 A |
| Motor Power: | 22/45/55 kW |
- Coated circuit boards for reliable operation in harsh environment
- Built-in by-pass on all sizes, saving energy and reducing installation time
- User friendly HMI with illuminated language neutral display and 4-button keypad
- Torque control for excellent control of pumps
- Motor overload protection with classes 10A, 10, 20 and 30
- Motor underload protection to detect pumps running dry
- Locked rotor protection, detecting jammed pumps
- Kick start to start jammed pumps or conveyor belts
- Analog output showing operational current, 4 to 20 mA
- Sophisticated algorithm eliminating the DC component and thereby providing excellent starting performance
- 22 kW at 230 V, 45 kW at 400 V, 55 kW at 500 V 3 ph motor power rating
- UL 508|CSA C22.2 No. 14|CE Certified|cULus Listed|CCC Certified|EAC Certified|ANCE Certified|C-Tick Certified|ABS Approved|GL Approved|Lloyd's Registered Approved|DNV Approved|CCS Approved
