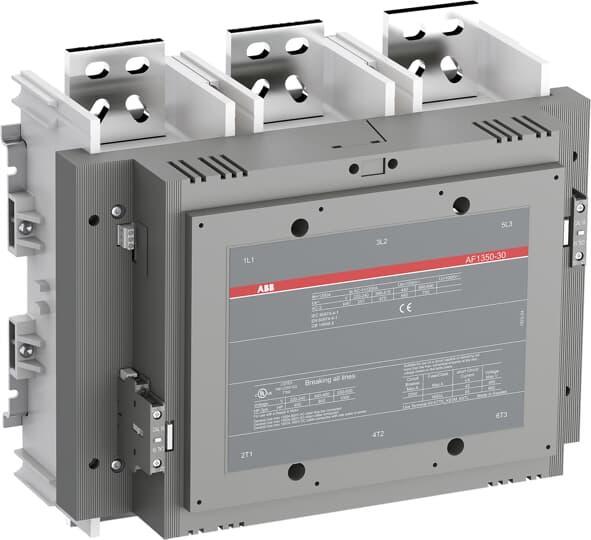

ABB AF1350-30-22-70 AF Series Non-Reversing Line Contactor, 100 to 250 V AC/DC V Coil, 1350 A, 3NO Contact, 3 Poles
Sku #32050025015
MFG #AF1350-30-22-70
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 400 hp, 800 hp, 1000 hp |
| Series: | AF Series |
| Maximum Load Current: | 1350 A |
| Number of Poles: | 3 |
- Compact, space saving design
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC)
- Only 1 coil for AF1350 ... AF2650 to cover control voltages between 100 to 250 V 50/60 Hz and 100 to 250 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 1350 A at 1000 V, 1150 A at 1000 V, 1000 A at 1000 V, 1350 A at 690 V, 1150 A at 690 V, 1000 A at 690 V rated operational current AC-1
- 860 A at 220/230/240 V, 860 A at 380/400 V, 860 A at 415 V, 860 A at 440 V, 800 A at 500 V, 800 A at 690 V rated operational current AC-3
- 400 hp at 220 to 240 VAC 3 ph, 800 hp at 440 to 480 VAC 3 ph, 1000 hp at 550 to 600 VAC 3 ph
- 560 kW at 1000 V, 257 kW at 220/230/240 V, 475 kW at 380/400 V, 500 kW at 415 V, 560 kW at 440 V, 560 kW at 500 V, 800 kW at 690 V
- For controlling single and 3 ph motors and switching power circuits
- BAA Compliant|BV Certified|CB Certified|CCC Certified|CSA Certified|GL Certified|IEC Certified|LOVAG Certified|LR Certified|RMRS Certified|UL Listed
