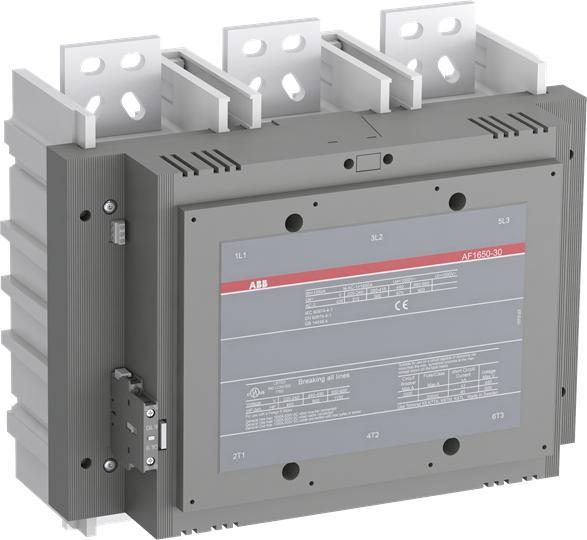

ABB AF1650-30-11-70 AF Series Non-Reversing Line Contactor, 100 to 250 V AC/DC V Coil, 1350 A, 3NO Contact, 3 Poles
Sku #32050024970
MFG #AF1650-30-11-70
Attributes
| Type: | Non-Reversing |
| Coil Voltage: | 100 to 250 V AC/DC |
| Coil Power Rating: | 450 hp, 900 hp, 1150 hp |
| Series: | AF Series |
| Maximum Load Current: | 1350 A |
| Number of Poles: | 3 |
- For controlling single and 3 ph motors and switching power circuits
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC)
- Only 1 coil for AF1350 ... AF2650 to cover control voltages between 100 to 250 V 50/60 Hz and 100 to 250 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltage sags
- Built-in surge suppression
- Add-on auxiliary contact blocks for side mounting and a wide range of accessories
- 1650 A at 1000 V, 1450 A at 1000 V, 1270 A at 1000 V, 1650 A at 690 V, 1450 A at 690 V, 1270 A at 690 V rated operational current AC-1
- 1060 A at 220/230/240 V, 1060 A at 380/400 V, 1060 A at 415 V, 1060 A at 440 V, 970 A at 500 V, 970 A at 690 V rated operational current AC-3
- 450 hp at 220 to 240 VAC 3 ph, 900 hp at 440 to 480 VAC 3 ph, 1150 hp at 550 to 600 VAC 3 ph
- 600 kW at 1000 V, 315 kW at 220/230/240 V, 560 kW at 380/400 V, 630 kW at 415 V, 710 kW at 440 V, 710 kW at 500 V, 1000 kW at 690 V
- BAA Compliant|BV Certified|CB Certified|CCC Certified|CE Certified|GL Certified|LOVAG Certified|LR Certified|RMRS Certified|RINA Certified|RoHS Compliant
