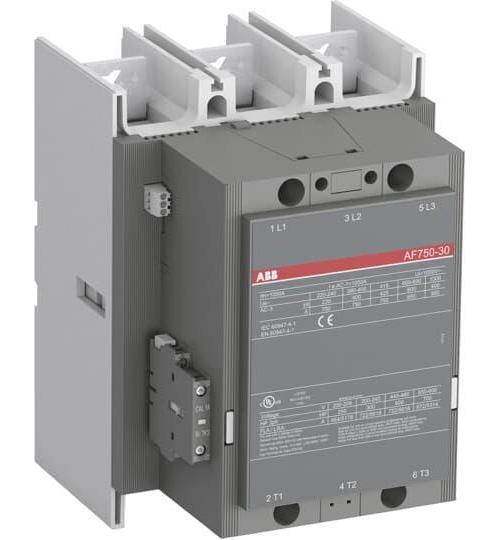

ABB AF750-30-11-70 AF750 Contactor, 100 V AC, 250 V DC V Coil, 900 A, 3NO Contact, 3 Poles
Sku #32050021770
MFG #AF750-30-11-70
Attributes
| Series: | AF750 |
| Maximum Load Current: | 900 A |
| Number of Poles: | 3 |
| Coil Voltage: | 100 V AC, 250 V DC |
| Coil Power Rating: | 5/12/880 VA |
| Frequency Rating: | 50/60 Hz |
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Can withstand short voltage dips and voltages sags (SEMI F47 conditions of use on request)
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 coils to cover control voltages between 48 to 500 VAC, 50/60 Hz and 24 to 500 VDC
- 880 VA pull-in, 12/5 VA holding coil power rating
- Motor Starting, Isolation, By-Pass and Distribution Applications Up to 1000 VAC
- RoHs, CSA, cUL, CE, GOST
