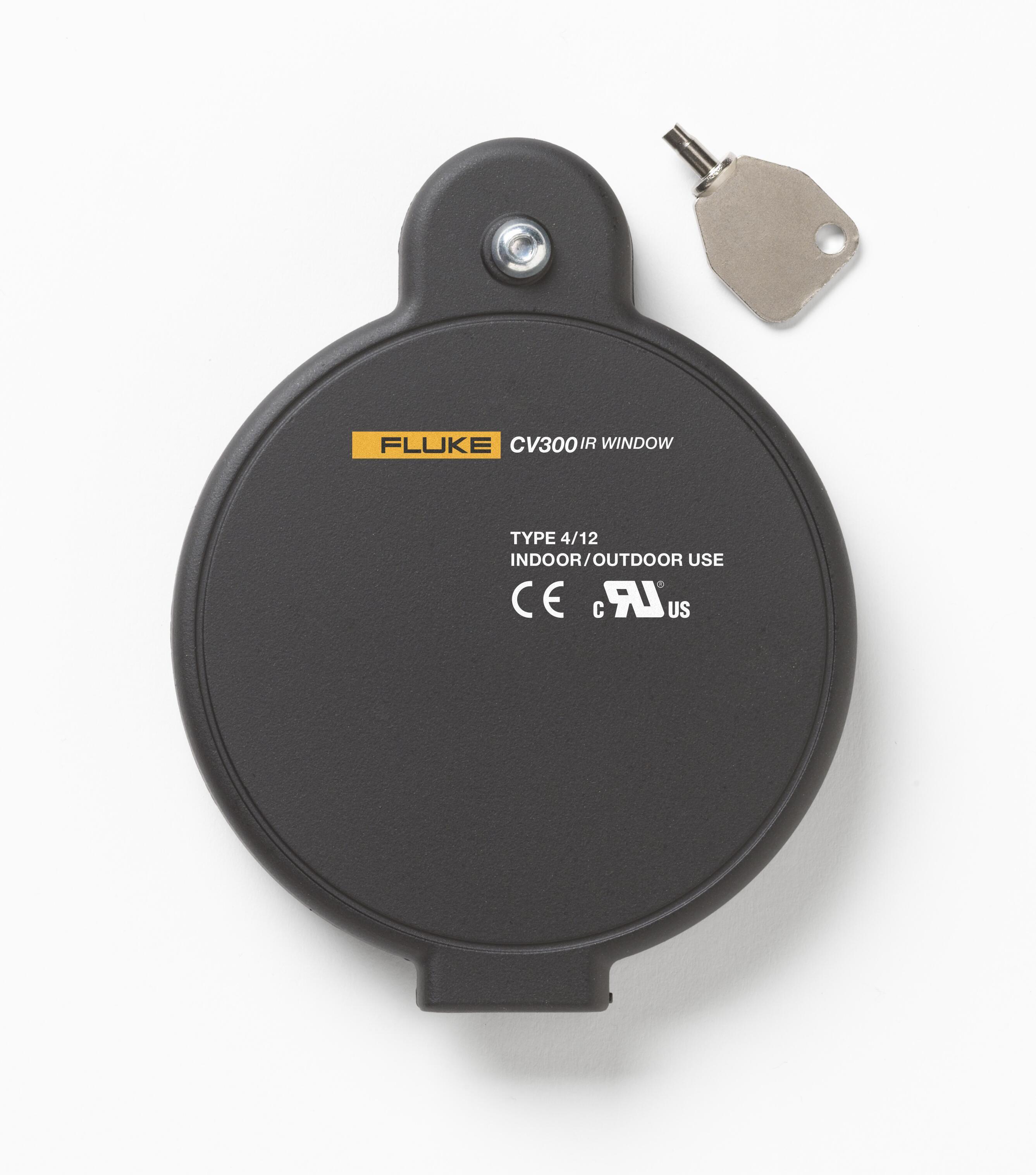

Sku #09596966707
MFG #FLUKE-CV300
Attributes
| Series: | CV Series |
| Window Thickness: | 0.64 in |
| Viewing Aperture Area: | 5.62 sq-in |
| Crystal Insert Size: | 3 in |
| Viewing Aperture Size: | 2-5/8 in Dia |
- Installs and grounds in less than 5 min
- One technician
- One hole with standard Greenlee® punch
- Panel door does not need to be removed
- Grounds instantly to metal enclosure with patent pending AutoGround™ process
- Maintains panel arc test ratings up to 63 kA when properly installed
- Work more efficiently with Fluke® ClirVu® CV200 50 mm infrared windows
- NFPA 70E processes significantly reduced due to less work permit requirements
- Faster and more comfortable inspections because full PPE is often not required
- Reduce the risk of arc flash and electrocution, increase the safety of your personnel and reduce the time and cost of preventive maintenance
- Convenience of both quick turn or security keyed access
- Indoor and Outdoor Applications
- RoHS Compliant|CSA C22.2 No. 14-13:2012|IEC60529-1|IEC 60068-2-6|60068-2-3 at TUV|IEEE C37.20.7 at KEMA|UL 50/50E/50V|UL 1558
