Sku #09596941745
MFG #ACD-10-PLUS
Attributes
| Type: | Digital |
| Resistance: | 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm |
| Jaw Capacity: | 1 in |
| Electrical Ratings: | 40 to 600 A, 4 to 600 V AC/DC, 400 mV DC |
| Frequency Rating: | 40 to 400 Hz with Jaw, 10 Hz to 100 kHz with Test Leads |
| Counts: | 4000 |
- Thin jaws, only 10 mm THK make it easier to maneuver between tightly packed conductors
- Measures frequency, resistance and capacitance
- Features continuity beeper to quickly find opens and shorts
- Accommodates conductors up to 1 in Dia
- Auto ranging saves time by instantly selecting correct range
- Auto power off to conserve battery life
- Rubber over molded case absorbs shock
- +/-0.8% + 8 digits at 400 Ohm, +/-0.6% + 4 digits at 4 to 400 kOhm, +/-1% + 4 digits at 4 MOhm, +/-2% + 4 digits at 40 MOhm resistance accuracy
- +/-0.3% + 4 digits at 400 mVDC, +/-0.5% + 3 digits at 4 to 400 VDC, +/-1% + 4 digits at 600 VDC, +/-1.5% + 5 digits at 4 to 400 VAC, +/-2% + 5 digits at 600 VAC for 50 to 500 Hz voltage accuracy
- For AC/DC measurement with True RMS accuracy and offers capacitance and frequency
- CE Marking|cULus Listed|EN 61010-1|EN 61010-2-032|IEC 61010-1|RoHS Compliant|UL 61010B-2-032
- Test Leads, Battery (Installed), Soft Carrying Pouch and User Manual

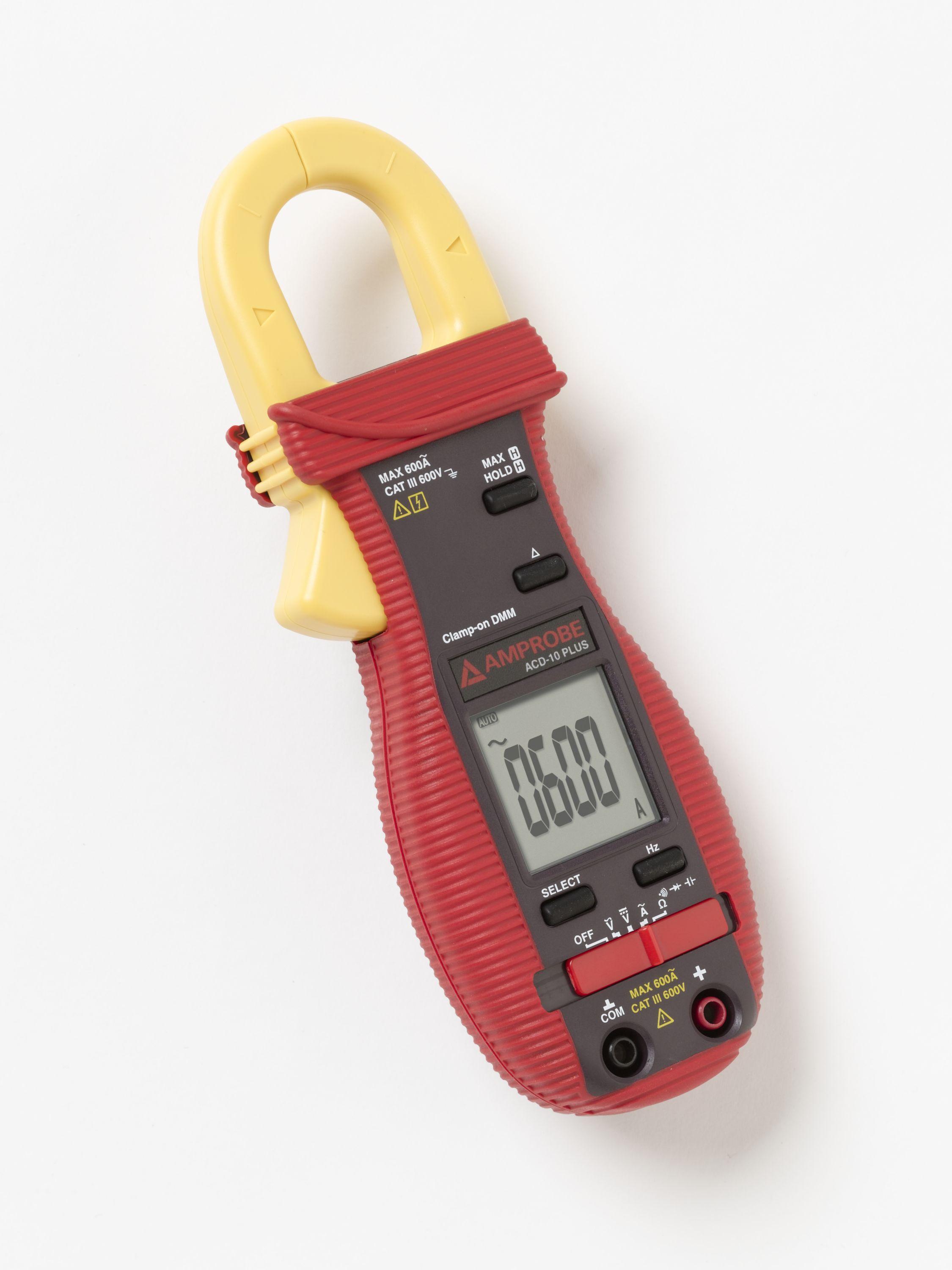

Amprobe®Amprobe® ACD-10-PLUS Digital Clamp-On Multimeter, 40 to 600 A, 4 to 600 V AC/DC, 400 mV DC, 400 Ohm, 4 to 400 kOhm, 4 to 40 MOhm, 40 to 400 Hz with Jaw, 10 Hz to 100 kHz with Test Leads, 1 in Jaw, 3-3/4 Digits LCD Display
SKU #09596941745
MFG #ACD-10-PLUS
