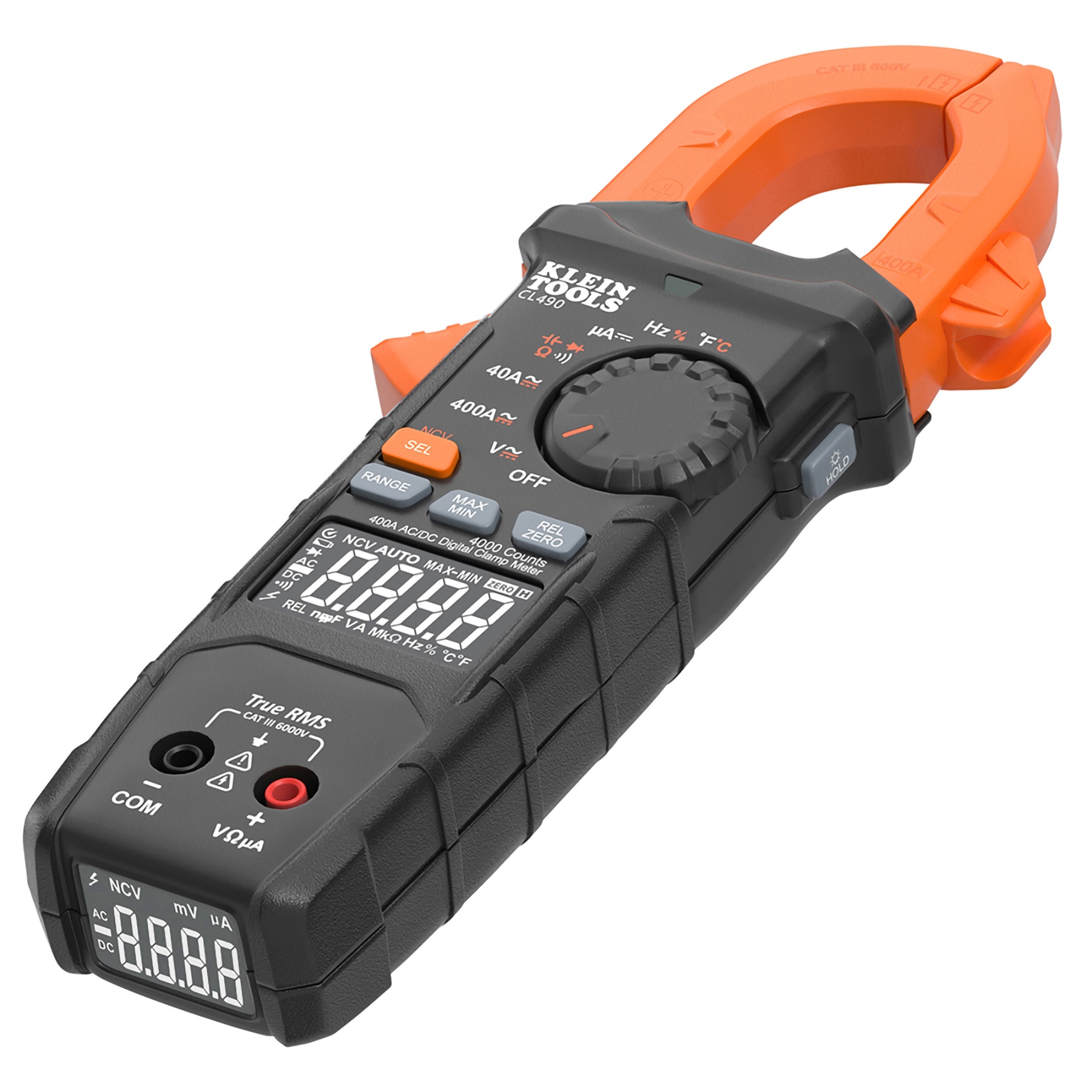

Klein® CL490 Clamp Meter, 400 A at 600 V AC/DC, 40 mOhm, 10 Hz to 60 kHz, 1.6 in Jaw, Digital Display
Sku #09264469427
MFG #CL490
Attributes
| Electrical Ratings: | 400 A at 600 V AC/DC |
| Frequency Rating: | 10 Hz to 60 kHz |
| Counts: | 4000 |
| Resistance: | 40 MOhm |
| Jaw Capacity: | 1.6 in |
| Display Type: | Digital |
- Dual Display digital clamp meter allows users to see readings in tight space areas
- Measures AC/DC current and NCVT via clamp, AC/DC voltage, resistance, continuity, frequency/duty cycle, DC microamps, diode test and capacitance via test leads, temperature via thermocouple
- Backlit reverse-contrast LCDs for clear data and best view-ability in all environments
- Ergonomic design provides a comfortable grip, with easy dial adjustment using the thumb
- Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
- CATIII 600V|Class 2, Double Insulation Safety Rating IEC EN 61010-1, 61010-2-032. IEC EN 61326-1, 61326-2-2.Conforms to UL STD.61010-1, 61010-2-032|Certified to CSA STD.C22.2 NO. 61010-1, 61010-2-032
