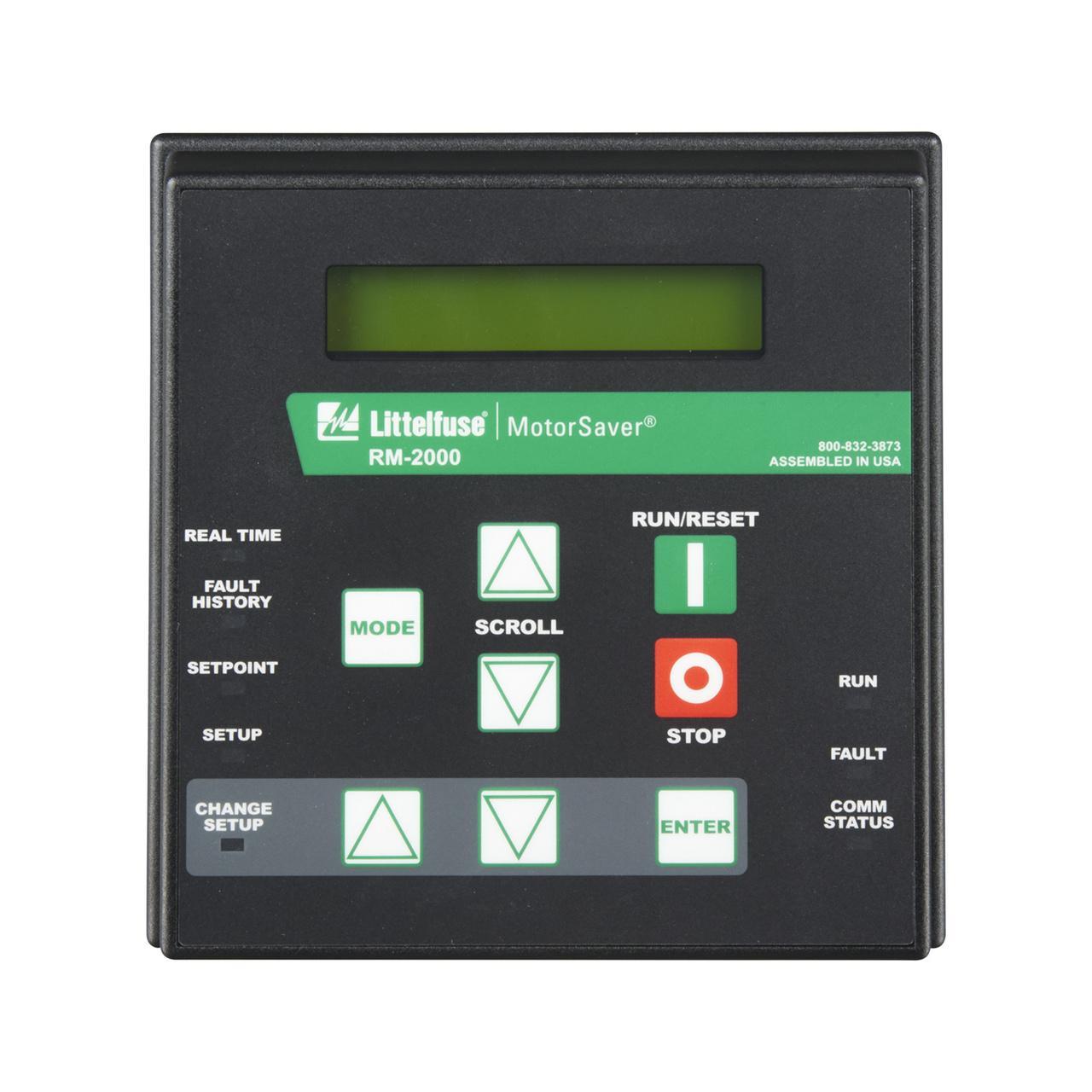

Littelfuse® RM2000 Remote Monitor, For Use With 777 Series 3-ph Current and Voltage Monitor, 77C Series 1-ph Current and Voltage Monitor, 601 Series 3-ph Voltage and Frequency Monitor, 115 V AC, 4 to 158 deg F Operating, Polycarbonate, Black
Sku #07945899823
MFG #RM2000
Attributes
| Series: | RM2000 |
| Specifications: | 115 V AC, 4 to 158 deg F Operating |
| Color: | Black |
| Suitable For Use With: | 777 Series 3-ph Current and Voltage Monitor, 77C Series 1-ph Current and Voltage Monitor, 601 Series 3-ph Voltage and Frequency Monitor |
| Material: | Polycarbonate |
| Dimensions: | 6.1 in W x 1.1 in D x 6.4 in H |
- CE IEC 60947-6-2|CSA 22.2 #14 (File #46510)|UL508 (File #E68520)|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
- Average current, individual line currents and current unbalance
- Current to ground
- Average voltage, line-line voltages and voltage unbalance
- Instantaneous power
- Power factor
- Last four faults
- All parameters programmed into 777 MotorSaver®
- Remaining restart delay times
- Start and stop buttons
- Key lock input to prevent setpoint changes
- Change 777 setpoints from keypad
- Total motor run-time
- Time and date of last four faults, along with voltage and current at time of trip
- Time and date of last 10 motor starts
- Total number of motor restarts
- Minimum time between any two starts with time and date
- Run-time since last start
- kWh consumed
- kVARs consumed
