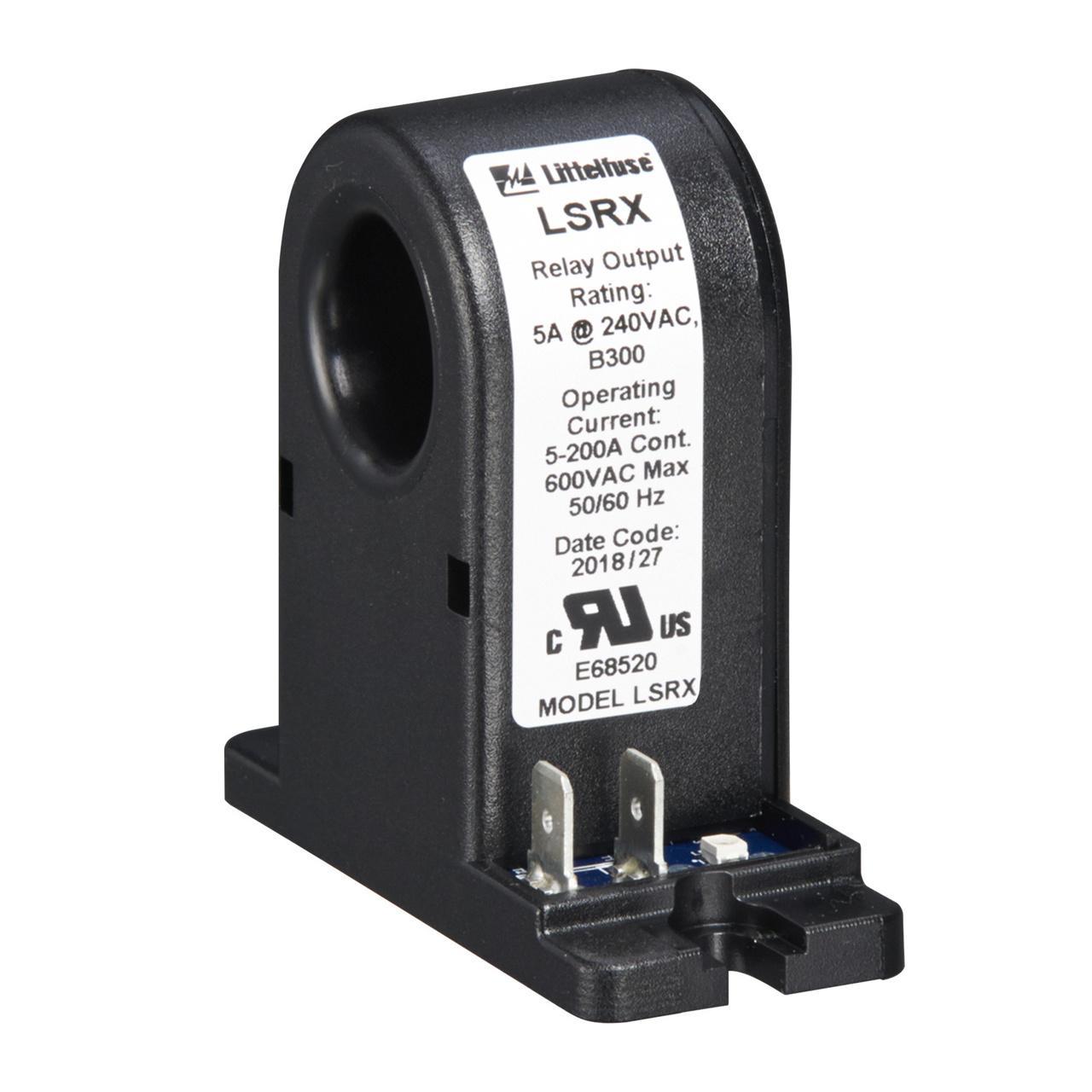

Littelfuse® Symcom LSRX-C Load Sensor Relay, 5 to 200 A, 1NO 1 Form A SPST
Sku #07945899688
MFG #LSRX-C
Attributes
| Series: | LSRX |
| Sensor Type: | Self-Powered |
| Mounting Type: | Surface |
| Amperage Rating: | 5 to 200 A |
| Contact Configuration: | 1NO 1 Form A SPST |
| Terminal Type: | Depluggable Screw |
- Self powered eliminates need for separate control voltage, draws power from wire being monitored
- Quick connect terminals saves time at installation
- LED indication visual indication of relay status
- Built-in current sensor will monitor up to 200 A loads eliminates the need for a stand alone current transformer and also provides isolation between the monitored and control circuits
- 480 VA at 240 VAC, B300 pilot duty rating, 5 A at 240 VAC general purpose
- UL Listed|UL 508 File No. E68520 Recognized|CE Certified|IEC 60947|IEC 68-2-3|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
