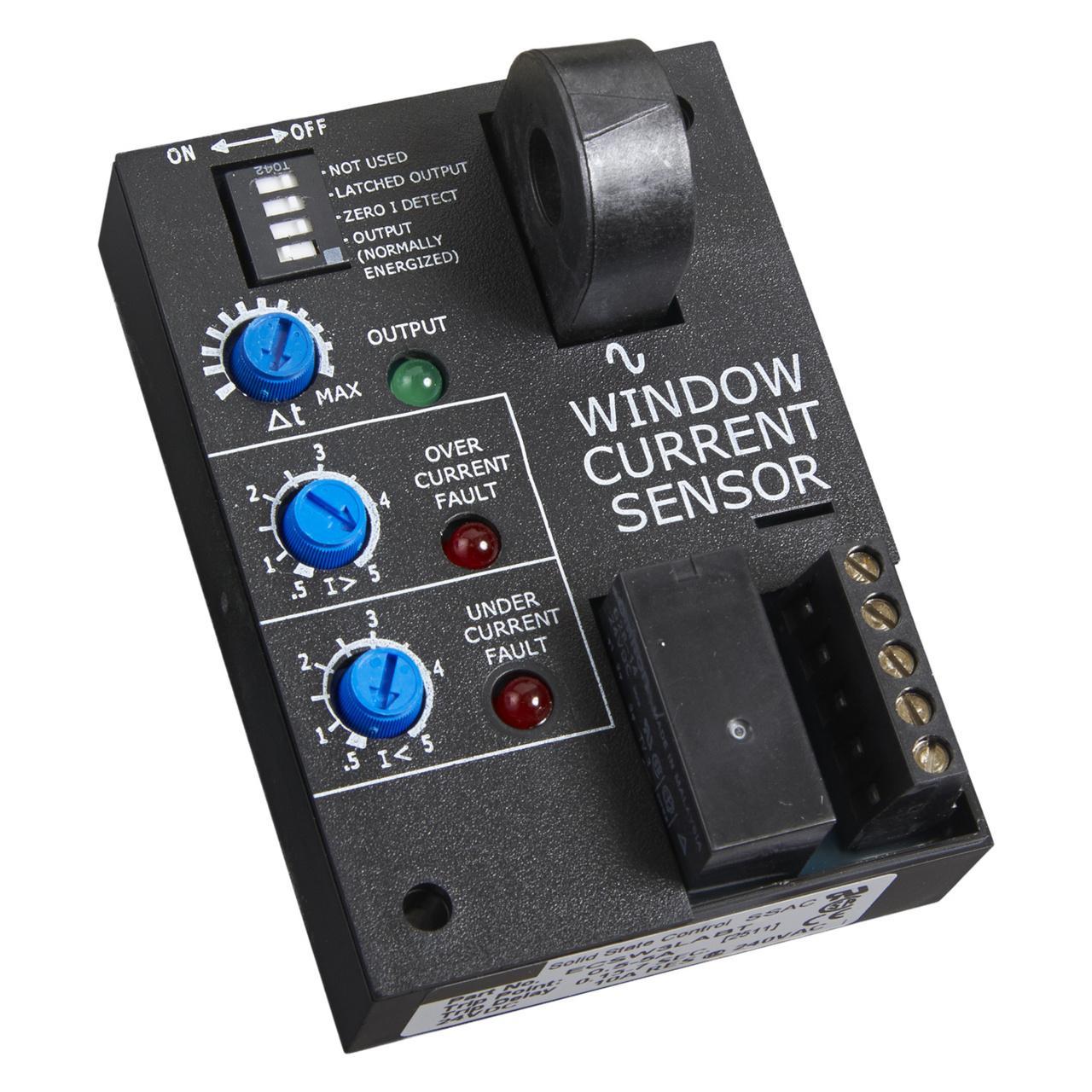

Littelfuse® SSAC® ECSW4MBHT Isolated Electro Mechanical Current Sensor Relay, 120 V AC, 1 Form C SPDT, 0.5 to 50 s Trip Delay
Sku #07945899284
MFG #ECSW4MBHT
Attributes
| Type: | Isolated Electro Mechanical |
| Voltage Rating: | 120 V AC |
| Sensor Type: | Toroid |
| Series: | ECSW |
| Frequency Rating: | 50/60 Hz |
| Contact Configuration: | 1 Form C SPDT |
- Built-in toroidal current sensing eliminates need to install stand alone current transformer and provides isolation from monitored circuit
- Encapsulated protects against shock, vibration and humidity
- LED indication visual indication for trip point adjustment and fault indication
- Multiple switch selectable features, user selectable zero current detection, latched, normally de-energized, or energized output adds application flexibility
- Adjustable trip delay eliminates nuisance tripping and prevents rapid cycling
- Isolated 10 A, SPDT output contact allows control of loads for AC or DC voltages
- Toroid, through hole wiring for up to 4 AWG (21.1 sq-mm ) THHN wire sensor type
- CE Certified|UL Recognized|CSA Certified|IEEE C62.41-1991|PPROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
